LED Display Home UPS Inverter Price

Products Visitors:440

Products description:


Supplier Details
Company Name : NETCCA Electronic Power Co.ltd
Contact Person : VIPIN LU
Tel : 86-757-88020773
8613702653665
Fax : 86-757-88020782
Email : netcca@163.com
Address : No.55, industrial area, JiLi, Foshan City,Guangdong,P.R.China
WebSite :  http://www.yeskey.com/space/netcca1809/
http://www.netcca.com.cn
  • Products description:

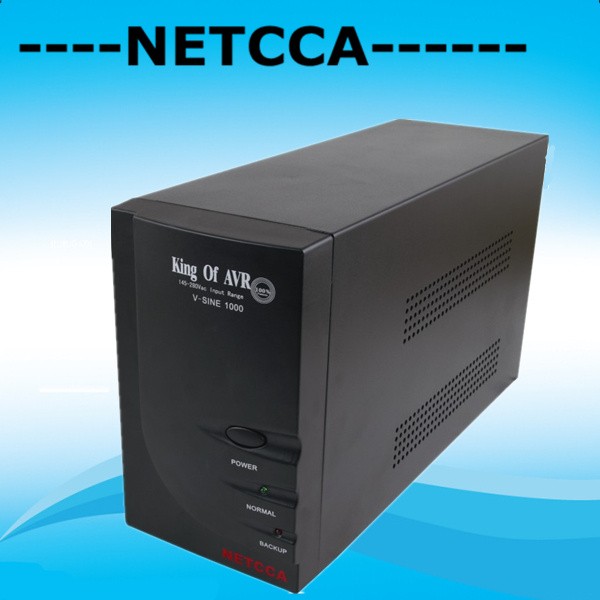

LED Display Home UPS Inverter Price

LED Sine Series UPS Technical Parameters:

Model

sine500VA

sine1000VA

Using rate capacity

300W

700W

Output votage

220Vadjustable

Stablize voltage range

190V~240V

Output friquence

47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz nominal

Waveform

True sine wave

Output socker/line

Guobiao/ IEC 320 C13optional

Rated input voltage

220V

Input frequence

0/60 Hz +/- 3 Hz (autoadaption)

Battery voltage

12V

24V

Working voltage range

160 - 275V

Charging voltage

27.5V

Charging current

10A MAX

Self-start of voltage

when mains supply state

180V

Automatical opertaion

yes

Forced cooling when

Inveting state

yes

Fan

Stop when fully powered

Communication interface

RS232/USB

Control panel

LED show online,battery backup,overload and cut off

Alarm function

Battery powering alarmlow power alarm

Overload protection capacity

450W

900W

Dimension(MM)

345*102*155

360*123*190

Weigh(outside battery)KG

9

17.5

Weight(inside battery) (KG)

6.5

12.5



NETCCA UPS Features:

Environmental protection!

In21 century, we courte health and high quality life. The ups devices need not only mature and humanization function but also reaching zero radicalization standard. Ordinary electrical equipments almost depend on sine wave form electrify supply. If we use a UPS which Designed output square wave may cause the wave aberrance. That lead to electromagnetic radiation as we all know the sing do harm to ourself.

Sureness!

The type of stand by drive is base on economizing cost, So it has very short range of application. When it has careless load with inductance character equipment such as fan, daylight lamp, icebox? Even it is very light load, the drive will be impacted greatly. It maybe lead power tube in drive to blast burn? As so on. On the other hand, the type of on line drive will be not has this hidden trouble.

The type of stand by drive is base on economizing cost, So it has very short range of application. When it has careless load with inductance character equipment such as fan, daylight lamp, icebox…Even it is very light load, the drive will be impacted greatly. It maybe lead power tube in drive to blast burn…as so on. On the other hand, the type of on line drive will be not has this hidden trouble.

Trademark!

NETCCA CO. is the producing base of Germany VMC energy source in China area. NETCCA Trademark have enrolled in China. By technology, quality and serve, NETCCA POWER CO. win clients’ trust  over the world.

The best!

NETCCA sine wave king series have became the first capability compare price product in the same kind drive in the world at 2005.

Overflow!

Price of square wave and quality of on line. In rating load by battery supply it can burden any of load include PC, fan, daylight lamp, icebox, anvil type percussion, medical treatment equipment, war industry equipment as so on. Moreover it can associate with electrical machine work well. So NETCCA sine wave king is not lnly serve as UPS but also serve as inverter, charging power supply, field power supply. Make it sure that NETCCA had promised poular price and overflow return to consumer.
