Detailed Product Description

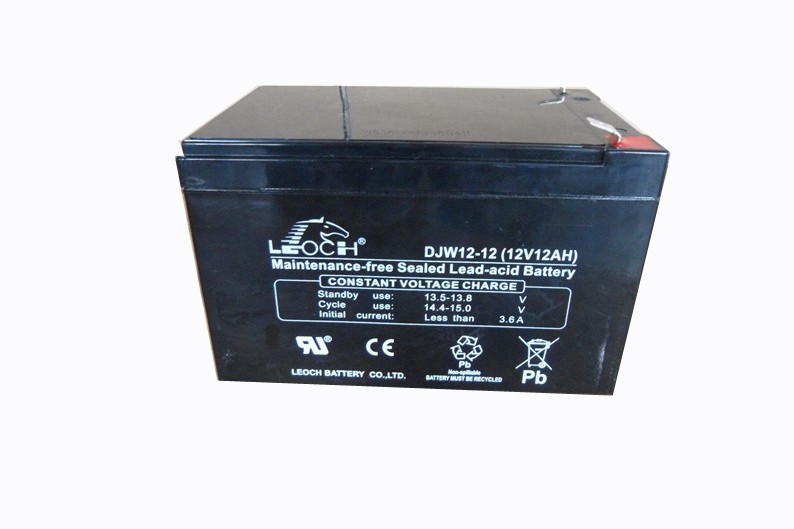

UPS Battery
12V ups battery
12AH UPS battery
Top brand, high quality ups battery
Certificates:ISO9001:2000,CE,FCC,UL,VDS
UPS Battery
specifications:
Battery Model: LP 12v 12AH
Dimension: (L*W*H*TH) 151*98*95*101mm
Approx Weight: 3.60 kg (7.94lbs)
Terminal: T1 / T2
Rated Capacity:
12.0 AH/0.60A (20hr ,1.80V/cell,250C/770F)
11.2 AH/1.12A (10hr,1.80V/cell,250C/770F)
10.2 AH/2.04A (5hr,1.75V/cell,250C/770F)
9.2 AH/3.06A (3hr,1.75V/cell,250C/770F)
7.54AH/7.54A (1hr,1.60V/cell,250C/770F)
Max. Discharge Current :180A (5s)
Internal Resistance: Approx 14mΩ
Operating Temp.Range:
Discharge : -15~500C (5 ~1220F)
Charge : 0~400C (32 ~1040F )
Storage : -15~400C (5~1040F)
Nominal Operating Temp. Range: 25±30C (77±50F )
Cycle Use:
Initial Charging Current less than 3.6A.Voltage 14.5V~15VVat 250 C(770 F)Temp. Coefficient -30mV/0C
Standby Use:
No limit on Initial Charging Current Voltage 13.5V~13.8V at 250 C(770 F) Temp. Coefficient -20mV/0C
Capacity affected by temperature:
40 0C (104 0 F) 103%
25 0C ( 77 0F ) 100%
0 0C ( 32 0F ) 86%
Self Discharge:
Leoch LPL series batteries may be stored for up to 6 months at 250 C (770F) and then a freshening charge is required. For higher temperatures the time interval will be shorter.
Typical Applications:
1. Uninterruptable power supply(UPS)
2. Electric power system(EPS)
3. Emergency backup power supply
4. Emergency light
5. Railway signal
6. Aircraft signal
7. Alarm and security system
8. Electronic apparatus and equiment
9. Communication power supply
10.DC power supply
11. Auto control system
Battery general features:
1.Using oxygen recombination technology: maintenance-free
2.PbCaSn alloy for plate grids: less gassing, less self-discharging
3.High quality AGM separator: extend cycle life and prevent micro short circuit
4.ABS material: increase the strength of battery container. (Flame-retardant ABS is optional);
5.High purity raw material: ensure low self discharge rate
6.Silver-coated copper terminals (T1, T2 terminal), brass insert terminals and lead terminals improve theelectric conductivity
Product Details:
Place of Origin |
Guangdong, China (Mainland) |
Brand Name |
LEOCH |
Model Number |
LP12-12 |
Phase |
Single Phase |
Protection |
Short Circuit |
Weight |
3.56kg |
Output Voltage |
12V |
Type |
Standby |
Application |
Instrumentation |
maintenance type |
free |
Container Material |
ABS |
Max. Discharge Current |
180A (5s) |
Cycle Use |
14.4V~15.0V at 25℃ |
Standby Use |
13.5V~13.8V at 25℃ |
Self Discharge |
Leoch LP series batteries may be stored for up to 6 months at 25℃ |
certificates |
CE,ISO9001:2000,UL,VDS,FC |
Features1 |
High quality AGM separator |
Features2 |
High purity raw material |
Features3 |
Less self-discharging |
