Designated as an OEM production enterprise and sales base in China by German NETCCA Electronic Power Co., Ltd, we devote ourselves to the development, production and sales of Pure Sinewave UPS, Offline UPS, lithium iron phosphate UPS, home INVERTER, Pure Wave Communication Power Supply, Moving Power Supply and so on.
If you looking for continuous power protection then we’re here to help.Need a quotation or guidance with no obligation? No problem，just contact us.
Contact person: Vipin Lu
Mobile:13702653665
Tel:86-0757-88020773
Skype: netcca
MSN:netcca@hotmail.com
E-mail:vipinlu@netcca.com.cn // van@netcca.com.cn
Website: http://www.netcca-china.com/ http://www.netcca.com.cn/
Address: No.55, JiLi Industrial Park, Nanzhuang, Foshan City,Guangdong,P.R.China

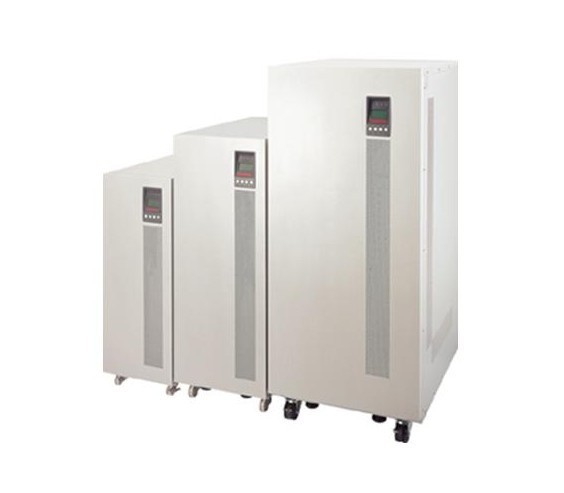

Feature：
double conversion high frequence online techology,
smart online communication interface,
bypass output,
strong capacityof resisting disturbance,
DC start-up, powerful charge up ability,
automatic restart function, possible to colocate with power generator,
able to connect with inductive load.
|
Model |
PV1063 |
PV1063S |
PV1103 |
PV1103S |
PV3103S |
PV3153S |
PV3203S |
|||
|
Rated Capacity |
6KVA |
10KVA |
15KVA |
20KVA |
||||||
|
Input |
Current |
31A |
50A |
75A |
100A |
|||||
|
Voltage |
176~276VAC |
304~478VAC |
||||||||
|
Wire |
Single phase with two lines+ ground wire |
Three phase with four lines+ ground wire |
||||||||
|
Frequency |
46~54Hz |
|||||||||
|
Output |
Current |
27A |
45A |
68A |
91A |
|||||
|
Voltage |
220*（1±1%）VAC |
|||||||||
|
Frequency |
Synchronized with the power grid (Main power mode); 50*（1±0.1%）Hz(Battery mode) |
|||||||||
|
Waveform |
Sine wave form |
|||||||||
|
Overload |
105%~130% transfer to bypass after 10min,above 150% after 1 min |
|||||||||
|
Transfer |
Zero Conversion |
|||||||||
|
Battery |
Type |
Valve Regulated Lead AcidBattery |
||||||||
|
Back -up |
Full |
>7min |
— |
>5min |
— |
— |
— |
— |
||
|
Half |
>20min |
— |
>13min |
— |
— |
— |
— |
|||
|
Voltage |
240VDC |
|||||||||
|
Environment |
Temperature |
0℃~40℃ |
||||||||
|
Humidity |
0%~90% |
|||||||||
|
Dimension (mm) |
Machine |
550*255*720 |
||||||||
|
Package |
730*440*910 |
|||||||||
|
Weight （kg） |
N.W. |
79 |
33 |
81.5 |
35 |
39 |
53 |
53 |
||
|
G.W. |
87.5 |
41.5 |
90 |
43.5 |
57.5 |
61.5 |
61.5 |
|||
