Designated as an OEM production enterprise and sales base in China by German NETCCA Electronic Power Co., Ltd, we devote ourselves to the development, production and sales of Pure Sinewave UPS, Offline UPS, lithium iron phosphate UPS, home INVERTER, Pure Wave Communication Power Supply, Moving Power Supply and so on.
If you looking for continuous power protection then we’re here to help.Need a quotation or guidance with no obligation? No problem，just contact us.
Contact person: Vipin Lu
Mobile:13702653665
Tel:86-0757-88020773
Skype: netcca
MSN:netcca@hotmail.com
E-mail:vipinlu@netcca.com.cn // van@netcca.com.cn
Website: http://www.netcca-china.com/ http://www.netcca.com.cn/
Address: No.55, JiLi Industrial Park, Nanzhuang, Foshan City,Guangdong,P.R.China
Introductions
Application strategy
Application range
Product details
Multiple angles display

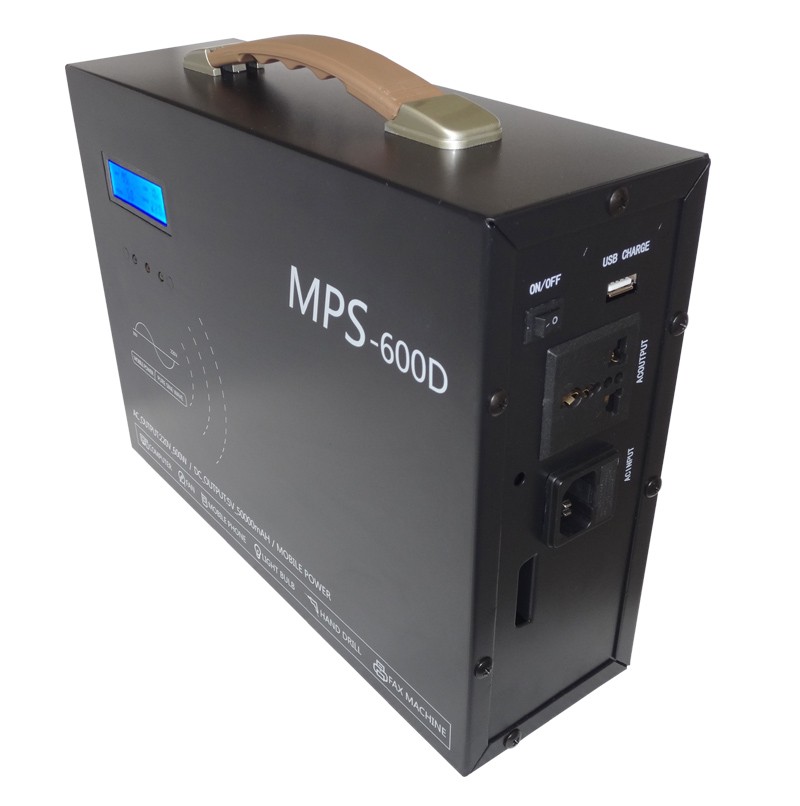

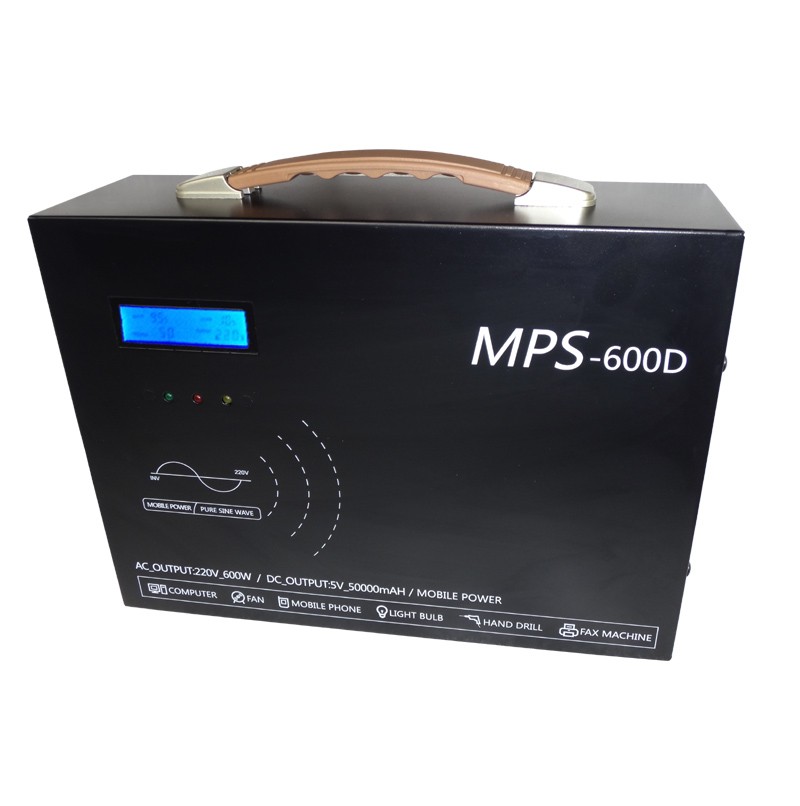

MPS-600D：
Measure：308*226*96mm
Color: Black
Output：AC 220V & DC 5V
| Model | MPS-600D |
| Using rate capacity | 600W |
| Input Voltage | 145~275Vac |
| Input Frequency | 50Hz±5% |
| Output Voltage(AC 220V） | 220±2%Vac |
| Output Voltage（USB 5V） | USB 5V 1A |
| Transfer time | 2-4ms |
| Charging current | 1.5Amp-2Amp |
| Battery type | maintenance-free lead-acid battery 12V 7AH*2 |
| Over-load ability | Shutdown after 60s when 110%~130% |
| Shutdown after 300ms when above 130% | |
| Load peak ratio | 3:1(max) |
| Distortion rate(full load)Linear load | <3% |
| Distortion rate(full load)Un-linear load | <6% |
| Work temperature | -15℃~55℃ |
| Relative humidity | 20%RH-90%RH No condensation |
| Installation | Hand-held type//wall type |
| Size mm(W×D×H) | 308 x226 x 96 |
| N.W(kg) | 6 |
