Introduction
Appliction range
Product details

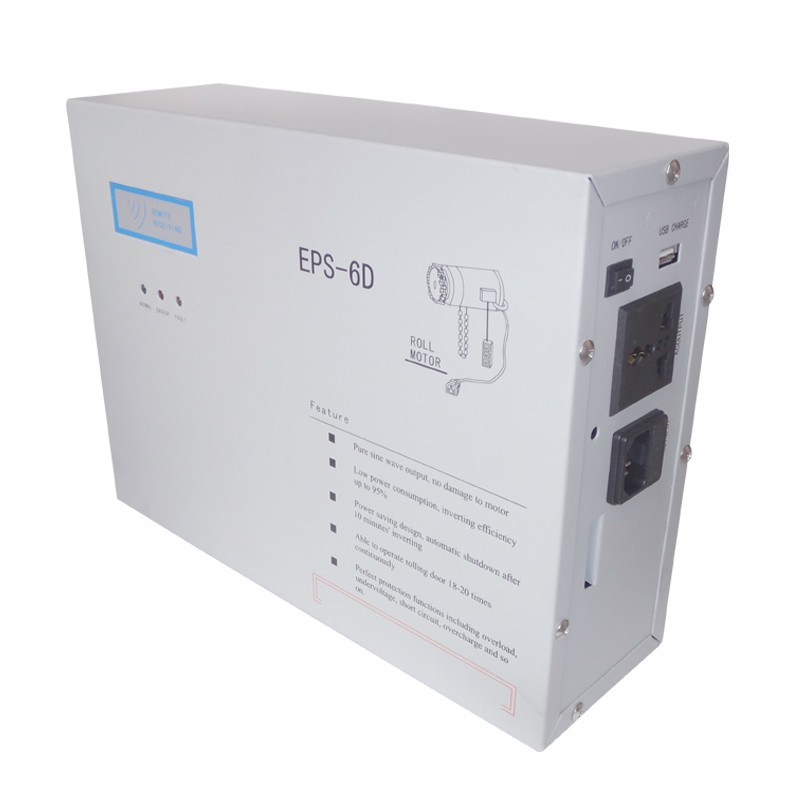

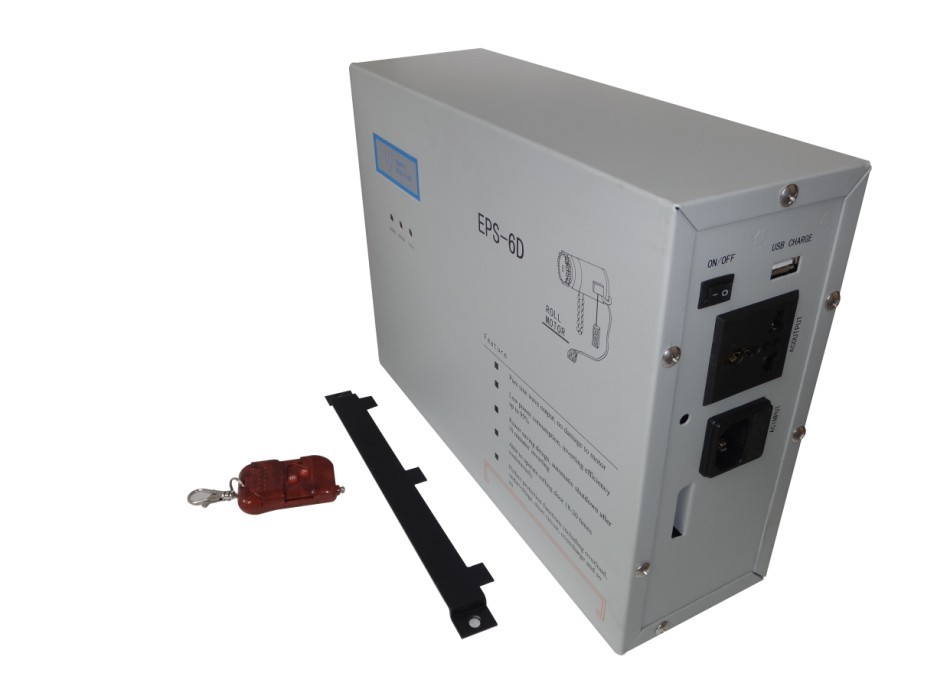

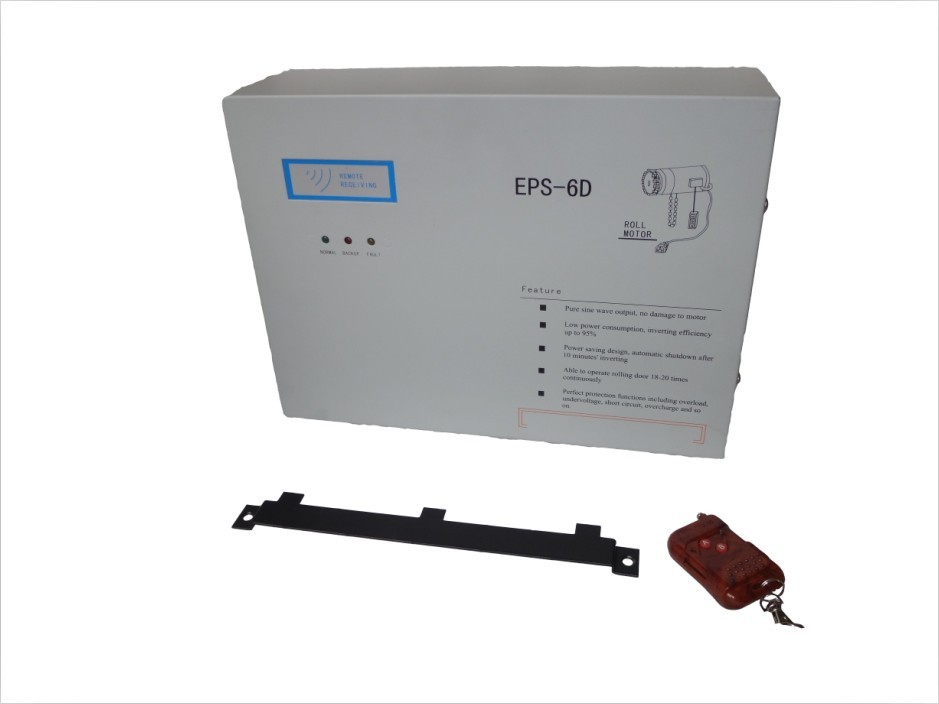

Multiple angles display
Features
1. Smart online, CPU micro-core chip control;
2. Pure sine wave output, no damage to motor;
3. Input frequency 50HZ/60HZ, automatic recognition;
4. Wide AC input range, automatic charge when shutdown
5. Low power consumption, inverting efficiency up to 95%
6. Power saving design, automatic shutdown after 10 minutes’ inverting
7. Internal large capacity maintenance-free lead-acid battery inside;
8. Able to operate rolling door 18-20 times continuously;
9. Perfect protection functions including overload, undervoltage, short circuit, overcharge and so on.
10. Remote control operation, wall-mounted installation, small volume and light weight.
| Model | EPS-6D |
| Using rate capacity | 600W |
| Input Voltage | 145~275Vac |
| Input Frequency | 50Hz±5% |
| Output Voltage(AC 220V） | 220±2%Vac |
| Output Voltage（USB 5V） | // |
| Transfer time | 2-4ms |
| Charging current | 1.5Amp-2Amp |
| Battery type | maintenance-free lead-acid battery 12V 7AH*2 |
| Over-load ability | Shutdown after 60s when 110%~130% |
| Shutdown after 300ms when above 130% | |
| Load peak ratio | 3:1(max) |
| Distortion rate(full load)Linear load | <3% |
| Distortion rate(full load)Un-linear load | <6% |
| Work temperature | -15℃~55℃ |
| Relative humidity | 20%RH-90%RH No condensation |
| Moto apply range | ≤600w |
| Open/shutdown design | Forced hand operation switch//80m remote switch |
| Installation | wall type |
| Size mm(W×D×H) | 308 x226 x 96 |
| N.W(kg) | 6 |
