Designated as an OEM production enterprise and sales base in China by German NETCCA Electronic Power Co., Ltd, we devote ourselves to the development, production and sales of Pure Sinewave UPS, Offline UPS, lithium iron phosphate UPS, home INVERTER, Pure Wave Communication Power Supply, Moving Power Supply and so on.
If you looking for continuous power protection then we’re here to help.Need a quotation or guidance with no obligation? No problem，just contact us.
Contact person: Vipin Lu
Mobile:13702653665
Tel:86-0757-88020773
Skype: netcca
MSN:netcca@hotmail.com
E-mail:vipinlu@netcca.com.cn // van@netcca.com.cn
Website: http://www.netcca-china.com/ http://www.netcca.com.cn/
Address: No.55, JiLi Industrial Park, Nanzhuang, Foshan City,Guangdong,P.R.China
Features:
Input：AC140-280±5V Output:220±10%;
40-70HZ range adapt generators;
the cold start function;
short circuite protection;
overcharge & over discharge protection;
smart software management, keep PC data safe
Approved for PC, network equipment, office equipment
|

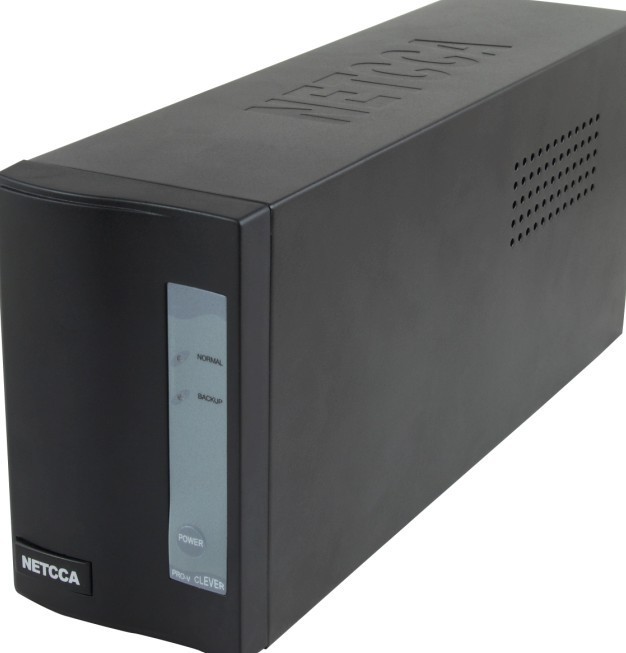

Mode |
PCH550 |
|
Using rate capacity |
300W |
|
Input Voltage |
145~275Vac |
|
Input Frequency |
50Hz±5% |
|
Output Voltage(battery pattern) |
220±10%Vac |
|
Output Frequency |
82Hz±2%(commercial power) |
|
Output wave |
square wave |
|
Transfer time |
6-8ms |
|
Reserve time(full load/half load) |
5mins/ |
|
Out battery DC voltage name |
12V |
|
Battery type |
Valve controls maintenance free lead-acid battery |
|
Over-load ability |
|
|
Load peak ratio |
3:1(max) |
|
Distortion rate(full load)Linear load |
<3% |
|
Distortion rate(full load)Un-linear load |
<6% |
|
|
|
|
Work temperature |
0℃~40℃ |
|
Relative humidity |
20%~90%No cindensation |
|
Size mm(W×D×H) |
320×85×140 |
|
N.W(kg) |
5．2 |
