YX1-46

Original Image

Products Visitors:675

Product Name:YX1-46

Products description: YX1-46

This is neodymium magnet, it is the third generation rare earth permanent magnet. And it is the most powerful and strongest magnet in World at present. No other magnet is stronger than it at present.
1. The neodymium magnet mainly have two classification according the different production process, the sintered neodymium magnet and Bonded neodymium magnet.

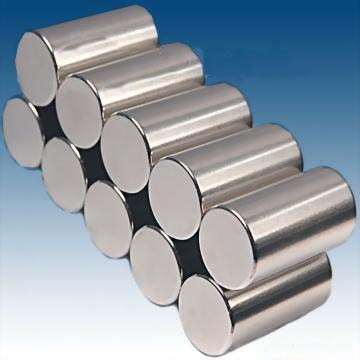

2. The picture's product is the sintered neodymium magent, it was manufacutured by powder metallurgy.
it is the cylinder shape. the cylinder shape is one regular shape of sintered neodymium magnet.
3. This cylinder type magnets can be in large length, about 50mm long.
4. We can supply the rough, so that customers can cut the magnet into the length they need.


Magnetic Characteristics And Physical Properties of Sintered NdFeB magnet:
Properties	Remanence	Coercive Force	Intrinsic Coercive Force	Max Energy Product	Max Working Temp
	Br	Hcb	Hcj	(BH)max	Tw
Grade	mT(KGs)	KA/m (KGs)	KA/m (KOe)	KJ/m 3 ( MGOe )	℃
N-30	1080-1130	≥ 796	≥ 955	223-247	≤ 80
N-30	(10.8-11.3)	( ≥ 10)	( ≥ 12)	(28-31)	≤ 80
N-33	1130-1180	≥ 836	≥ 955	247-270	≤ 80
N-33	(11.3-11.8)	( ≥ 10.5)	( ≥ 12)	(31-34)	≤ 80
N-35	1170-1220	≥ 868	≥ 955	263-287	≤ 80
N-35	(11.7-12.2)	( ≥ 10.9)	( ≥ 12)	(33-36)	≤ 80
N-38	1220-1250	≥ 899	≥ 955	287-310	≤ 80
N-38	(12.2-12.5)	( ≥ 11.3)	( ≥ 12)	(36-39)	≤ 80
N-40	1250-1280	≥ 923	≥ 955	302-326	≤ 80
N-40	(12.5-12.8)	( ≥ 11.6)	( ≥ 12)	(38-41)	≤ 80
N-42	1280-1320	≥ 923	≥ 955	318-342	≤ 80
N-42	(12.8-13.2)	( ≥ 11.6)	( ≥ 12)	(40-43)	≤ 80
N-45	1320-1380	≥ 876	≥ 955	342-366	≤ 80
N-45	(13.2-13.8)	( ≥ 11.0)	( ≥ 12)	(43-46)	≤ 80
N-48	1380-1420	≥ 836	≥ 876	366-390	≤ 80
N-48	(13.8-14.2)	( ≥ 10.5)	( ≥ 11)	(46-49)	≤ 80
N-50	1400-1450	≥ 860	≥ 876	382-406	≤ 80
N-50	(14.0-14.5)	( ≥ 10.8)	( ≥ 11)	(48-51)	≤ 80
30M	1080-1130	≥ 796	≥ 1114	223-247	≤ 100
30M	(10.8-11.3)	( ≥ 10)	( ≥ 14)	(28-31)	≤ 100
33M	1130-1180	≥ 836	≥ 1114	247-270	≤ 100
33M	(11.3-11.8)	( ≥ 10.5)	( ≥ 14)	(31-34)	≤ 100
35M	1170-1220	≥ 868	≥ 1114	263-287	≤ 100
35M	(11.7-12.2)	( ≥ 10.9)	( ≥ 14)	(33-36)	≤ 100
38M	1220-1250	≥ 899	≥ 1114	287-310	≤ 100
38M	(12.2-12.5)	( ≥ 11.3)	( ≥ 14)	(36-39)	≤ 100
40M	1250-1280	≥ 923	≥ 1114	302-326	≤ 100
40M	(12.5-12.8)	( ≥ 11.6)	( ≥ 14)	(38-41)	≤ 100
42M	1280-1320	≥ 955	≥ 1114	318-342	≤ 100
42M	12.8-13.2	( ≥ 12.0)	( ≥ 14)	(40-43)	≤ 100
45M	1320-1380	≥ 995	≥ 1114	342-366	≤ 100
45M	(13.2-13.8)	( ≥ 12.5)	( ≥ 14)	(43-46)	≤ 100
48M	1360-1430	≥ 1027	≥ 1114	366-390	≤ 100
48M	(13.6-14.3)	( ≥ 12.9)	( ≥ 14)	(46-49)	≤ 100
50M	1400-1450	≥ 1033	≥ 1114	382-406	≤ 100
50M	(14.0-14.5)	( ≥ 13.0)	( ≥ 14)	(48-51)	≤ 100
30H	1080-1130	≥ 796	≥ 1353	223-247	≤ 120
30H	(10.8-11.3)	( ≥ 10)	( ≥ 17)	(28-31)	≤ 120
33H	1130-1180	≥ 836	≥ 1353	247-271	≤ 120
33H	(11.3-11.8)	( ≥ 10.5)	( ≥ 17)	(31-34)	≤ 120
35H	1170-1220	≥ 868	≥ 1353	263-287	≤ 120
35H	(11.7-12.2)	( ≥ 10.9)	( ≥ 17)	(33-36)	≤ 120
38H	1220-1250	≥ 899	≥ 1353	287-310	≤ 120
38H	(12.2-12.5)	( ≥ 11.3)	( ≥ 17)	(36-39)	≤ 120
40H	1250-1280	≥ 923	≥ 1353	302-326	≤ 120
40H	(12.5-12.8)	( ≥ 11.6)	( ≥ 17)	(38-41)	≤ 120
42H	1280-1320	≥ 955	≥ 1353	318-342	≤ 120
42H	(12.8-13.2)	( ≥ 12.0)	( ≥ 17)	(40-43)	≤ 120
45H	1320-1380	≥ 963	≥ 1353	342-366	≤ 120
45H	(13.2-13.8)	( ≥ 12.1)	( ≥ 17)	(43-46)	≤ 120
48H	1370-1430	≥ 995	≥ 1274	366-390	≤ 120
48H	(13.7-14.3)	( ≥ 12.5)	( ≥ 16)	(46-49)	≤ 120
30SH	1080-1130	≥ 804	≥ 1592	223-247	≤ 150
30SH	(10.8-11.3)	( ≥ 10.1)	( ≥ 20)	(28-31)	≤ 150
33SH	1130-1170	≥ 844	≥ 1592	247-271	≤ 150
33SH	(11.3-11.7)	≥ 10.6	( ≥ 20)	(31-34)	≤ 150
35SH	1170-1220	≥ 876	≥ 1592	263-287	≤ 150
35SH	(11.7-12.2)	( ≥ 11.0)	( ≥ 20)	(33-36)	≤ 150
38SH	1220-1250	≥ 907	≥ 1592	287-310	≤ 150
38SH	(12.2-12.5)	( ≥ 11.4)	( ≥ 20)	(36-39)	≤ 150
40SH	1250-1280	≥ 939	≥ 1592	302-326	≤ 150
40SH	(12.5-12.8)	( ≥ 11.8)	( ≥ 20)	(38-41)	≤ 150
42SH	1280-1320	≥ 995	≥ 1592	318-342	≤ 150
42SH	(12.8-13.2)	( ≥ 12.5)	( ≥ 20)	(40-43)	≤ 150
45SH	1320-1380	≥ 1003	≥ 1592	342-366	≤ 150
45SH	(13.2-13.8)	( ≥ 12.6)	( ≥ 20)	(43-46)	≤ 150
28UH	1020-1080	≥ 764	≥ 1990	207-231	≤ 180
28UH	(10.2-10.8)	( ≥ 9.6)	( ≥ 25)	(26-29)	≤ 180
30UH	1080-1130	≥ 812	≥ 1990	223-247	≤ 180
30UH	(10.8-11.3)	( ≥ 10.2)	( ≥ 25)	(28-31)	≤ 180
33UH	1130-1170	≥ 852	≥ 1990	247-271	≤ 180
33UH	(11.3-11.7)	( ≥ 10.7)	( ≥ 25)	(31-34)	≤ 180
35UH	1180-1220	≥ 860	≥ 1990	263-287	≤ 180
35UH	(11.8-12.2)	( ≥ 10.8)	( ≥ 25)	(33-36)	≤ 180
38UH	1220-1250	≥ 907	≥ 1990	287-310	≤ 180
38UH	(12.2-12.5)	( ≥ 11.4)	( ≥ 25)	(36-39)	≤ 180
30EH	1080-1130	≥ 812	≥ 2388	223-247	≤ 200
30EH	(10.8-11.3)	( ≥ 10.2)	( ≥ 30)	(28-31)	≤ 200
33EH	1130-1170	≥ 812	≥ 2388	247-271	≤ 200
33EH	(11.3-11.7)	( ≥ 10.2)	( ≥ 30)	(31-34)	≤ 200
35EH	1170-1220	≥ 876	≥ 2388	263-287	≤ 200
35EH	(11.7-12.2)	( ≥ 11.0)	( ≥ 30)	(33-36)	≤ 200
30AH	1080-1130	≥ 812	≥ 2785	223-247	≤ 240
30AH	(10.8-11.3)	( ≥ 10.2)	( ≥ 35)	(28-31)	≤ 240
33AH	1130-1170	≥ 812	≥ 2785	247-271	≤ 240
33AH	(11.3-11.7)	( ≥ 10.2)	( ≥ 35)	31-34	≤ 240

NOTES:

The above-mentioned data of magnetic parameters and physical properties ars given at room temperature.

The maximum service temperature of magnet is changeable due to the ratio length and diameter and

Environmental factors.

Density: 7.4~7.6g/cm 3 ; α Br:-0.09~0.13%/ ℃, β Hcj: -0.50~0.80%/ ℃; Hv:600.

Product Images: YX1-46
