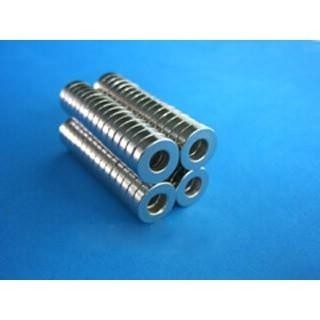

1.Material: Sintered Neodymium-Iron-Boron.
2.Size: It will be different according to client's requirement;
3. Magnetic property: From N35 to N52, 35M to 50M, 35H t 48H, 33SH to 45SH, 30UH to 40UH, 30EH to 38EH;we are able to manufacture the full range of Sintered Nd-Fe-B products including the high energy magnets such as N52, 50M, 48H, 45SH, 40UH,38EH,34AH, (BH)max from 33-53MGOe, maximum working temperature up to 230 Degrees Centigrade.
4. Coating: Zn, Nickle, silver, gold, epoxy and so on.
5. Advantage:
a. Chemical Composition: Nd2Fe14B: Neodymium magnets are hard, brittle and easily corrode;
b. Moderate Temperature Stability: Neodymium magnets lose -0.09~-0.13%of Br/°C. Their working stability is under 80°C for low Hcj Neodymium magnets and above 200°C for high Hcj Neodymium magnets;
c. Excellet Strength Value: The highest(BH)max reaches up to 51MGOe;
6. Application: sensors, speakers, brushless motor, DC motor, Step motor, wind turbine/wind generator, magntic hooks, magnetic filter, cup magnet, Automobiles, magnetic coupling, magnetic chuch, permanent magnetic lift, and so on.
We always produce the magnet according to client's request.
Magnetic Characteristics And Physical Properties of Sintered NdFeB |
|||||
Properties |
Remanence |
Coercive Force |
Intrinsic Coercive Force |
Max Energy Product |
Max Working Temp |
|
Br |
Hcb |
Hcj |
(BH)max |
Tw |
Grade |
mT(KGs) |
KA/m (KGs) |
KA/m (KOe) |
KJ/m 3 ( MGOe ) |
℃ |
N-30 |
1080-1130 |
≥ 796 |
≥ 955 |
223-247 |
≤ 80 |
(10.8-11.3) |
( ≥ 10) |
( ≥ 12) |
(28-31) |
||
N-33 |
1130-1180 |
≥ 836 |
≥ 955 |
247-270 |
≤ 80 |
(11.3-11.8) |
( ≥ 10.5) |
( ≥ 12) |
(31-34) |
||
N-35 |
1170-1220 |
≥ 868 |
≥ 955 |
263-287 |
≤ 80 |
(11.7-12.2) |
( ≥ 10.9) |
( ≥ 12) |
(33-36) |
||
N-38 |
1220-1250 |
≥ 899 |
≥ 955 |
287-310 |
≤ 80 |
(12.2-12.5) |
( ≥ 11.3) |
( ≥ 12) |
(36-39) |
||
N-40 |
1250-1280 |
≥ 923 |
≥ 955 |
302-326 |
≤ 80 |
(12.5-12.8) |
( ≥ 11.6) |
( ≥ 12) |
(38-41) |
||
N-42 |
1280-1320 |
≥ 923 |
≥ 955 |
318-342 |
≤ 80 |
(12.8-13.2) |
( ≥ 11.6) |
( ≥ 12) |
(40-43) |
||
N-45 |
1320-1380 |
≥ 876 |
≥ 955 |
342-366 |
≤ 80 |
(13.2-13.8) |
( ≥ 11.0) |
( ≥ 12) |
(43-46) |
||
N-48 |
1380-1420 |
≥ 836 |
≥ 876 |
366-390 |
≤ 80 |
(13.8-14.2) |
( ≥ 10.5) |
( ≥ 11) |
(46-49) |
||
N-50 |
1400-1450 |
≥ 860 |
≥ 876 |
382-406 |
≤ 80 |
(14.0-14.5) |
( ≥ 10.8) |
( ≥ 11) |
(48-51) |
||
30M |
1080-1130 |
≥ 796 |
≥ 1114 |
223-247 |
≤ 100 |
(10.8-11.3) |
( ≥ 10) |
( ≥ 14) |
(28-31) |
||
33M |
1130-1180 |
≥ 836 |
≥ 1114 |
247-270 |
≤ 100 |
(11.3-11.8) |
( ≥ 10.5) |
( ≥ 14) |
(31-34) |
||
35M |
1170-1220 |
≥ 868 |
≥ 1114 |
263-287 |
≤ 100 |
(11.7-12.2) |
( ≥ 10.9) |
( ≥ 14) |
(33-36) |
||
38M |
1220-1250 |
≥ 899 |
≥ 1114 |
287-310 |
≤ 100 |
(12.2-12.5) |
( ≥ 11.3) |
( ≥ 14) |
(36-39) |
||
40M |
1250-1280 |
≥ 923 |
≥ 1114 |
302-326 |
≤ 100 |
(12.5-12.8) |
( ≥ 11.6) |
( ≥ 14) |
(38-41) |
||
42M |
1280-1320 |
≥ 955 |
≥ 1114 |
318-342 |
≤ 100 |
12.8-13.2 |
( ≥ 12.0) |
( ≥ 14) |
(40-43) |
||
45M |
1320-1380 |
≥ 995 |
≥ 1114 |
342-366 |
≤ 100 |
(13.2-13.8) |
( ≥ 12.5) |
( ≥ 14) |
(43-46) |
||
48M |
1360-1430 |
≥ 1027 |
≥ 1114 |
366-390 |
≤ 100 |
(13.6-14.3) |
( ≥ 12.9) |
( ≥ 14) |
(46-49) |
||
50M |
1400-1450 |
≥ 1033 |
≥ 1114 |
382-406 |
≤ 100 |
(14.0-14.5) |
( ≥ 13.0) |
( ≥ 14) |
(48-51) |
||
30H |
1080-1130 |
≥ 796 |
≥ 1353 |
223-247 |
≤ 120 |
(10.8-11.3) |
( ≥ 10) |
( ≥ 17) |
(28-31) |
||
33H |
1130-1180 |
≥ 836 |
≥ 1353 |
247-271 |
≤ 120 |
(11.3-11.8) |
( ≥ 10.5) |
( ≥ 17) |
(31-34) |
||
35H |
1170-1220 |
≥ 868 |
≥ 1353 |
263-287 |
≤ 120 |
(11.7-12.2) |
( ≥ 10.9) |
( ≥ 17) |
(33-36) |
||
38H |
1220-1250 |
≥ 899 |
≥ 1353 |
287-310 |
≤ 120 |
(12.2-12.5) |
( ≥ 11.3) |
( ≥ 17) |
(36-39) |
||
40H |
1250-1280 |
≥ 923 |
≥ 1353 |
302-326 |
≤ 120 |
(12.5-12.8) |
( ≥ 11.6) |
( ≥ 17) |
(38-41) |
||
42H |
1280-1320 |
≥ 955 |
≥ 1353 |
318-342 |
≤ 120 |
(12.8-13.2) |
( ≥ 12.0) |
( ≥ 17) |
(40-43) |
||
45H |
1320-1380 |
≥ 963 |
≥ 1353 |
342-366 |
≤ 120 |
(13.2-13.8) |
( ≥ 12.1) |
( ≥ 17) |
(43-46) |
||
48H |
1370-1430 |
≥ 995 |
≥ 1274 |
366-390 |
≤ 120 |
(13.7-14.3) |
( ≥ 12.5) |
( ≥ 16) |
(46-49) |
||
30SH |
1080-1130 |
≥ 804 |
≥ 1592 |
223-247 |
≤ 150 |
(10.8-11.3) |
( ≥ 10.1) |
( ≥ 20) |
(28-31) |
||
33SH |
1130-1170 |
≥ 844 |
≥ 1592 |
247-271 |
≤ 150 |
(11.3-11.7) |
≥ 10.6 |
( ≥ 20) |
(31-34) |
||
35SH |
1170-1220 |
≥ 876 |
≥ 1592 |
263-287 |
≤ 150 |
(11.7-12.2) |
( ≥ 11.0) |
( ≥ 20) |
(33-36) |
||
38SH |
1220-1250 |
≥ 907 |
≥ 1592 |
287-310 |
≤ 150 |
(12.2-12.5) |
( ≥ 11.4) |
( ≥ 20) |
(36-39) |
||
40SH |
1250-1280 |
≥ 939 |
≥ 1592 |
302-326 |
≤ 150 |
(12.5-12.8) |
( ≥ 11.8) |
( ≥ 20) |
(38-41) |
||
42SH |
1280-1320 |
≥ 995 |
≥ 1592 |
318-342 |
≤ 150 |
(12.8-13.2) |
( ≥ 12.5) |
( ≥ 20) |
(40-43) |
||
45SH |
1320-1380 |
≥ 1003 |
≥ 1592 |
342-366 |
≤ 150 |
(13.2-13.8) |
( ≥ 12.6) |
( ≥ 20) |
(43-46) |
||
28UH |
1020-1080 |
≥ 764 |
≥ 1990 |
207-231 |
≤ 180 |
(10.2-10.8) |
( ≥ 9.6) |
( ≥ 25) |
(26-29) |
||
30UH |
1080-1130 |
≥ 812 |
≥ 1990 |
223-247 |
≤ 180 |
(10.8-11.3) |
( ≥ 10.2) |
( ≥ 25) |
(28-31) |
||
33UH |
1130-1170 |
≥ 852 |
≥ 1990 |
247-271 |
≤ 180 |
(11.3-11.7) |
( ≥ 10.7) |
( ≥ 25) |
(31-34) |
||
35UH |
1180-1220 |
≥ 860 |
≥ 1990 |
263-287 |
≤ 180 |
(11.8-12.2) |
( ≥ 10.8) |
( ≥ 25) |
(33-36) |
||
38UH |
1220-1250 |
≥ 907 |
≥ 1990 |
287-310 |
≤ 180 |
(12.2-12.5) |
( ≥ 11.4) |
( ≥ 25) |
(36-39) |
||
30EH |
1080-1130 |
≥ 812 |
≥ 2388 |
223-247 |
≤ 200 |
(10.8-11.3) |
( ≥ 10.2) |
( ≥ 30) |
(28-31) |
||
33EH |
1130-1170 |
≥ 812 |
≥ 2388 |
247-271 |
≤ 200 |
(11.3-11.7) |
( ≥ 10.2) |
( ≥ 30) |
(31-34) |
||
35EH |
1170-1220 |
≥ 876 |
≥ 2388 |
263-287 |
≤ 200 |
(11.7-12.2) |
( ≥ 11.0) |
( ≥ 30) |
(33-36) |
||
30AH |
1080-1130 |
≥ 812 |
≥ 2785 |
223-247 |
≤ 240 |
(10.8-11.3) |
( ≥ 10.2) |
( ≥ 35) |
(28-31) |
||
33AH |
1130-1170 |
≥ 812 |
≥ 2785 |
247-271 |
≤ 240 |
(11.3-11.7) |
( ≥ 10.2) |
( ≥ 35) |
31-34 |
||
|
|
|
|
|
|
NOTES: |
The above-mentioned data of magnetic parameters and physical properties ars given at room temperature. |
The maximum service temperature of magnet is changeable due to the ratio length and diameter and |
Environmental factors. |
Density: 7.4~7.6g/cm 3 ; α Br:-0.09~0.13%/ ℃, β Hcj: -0.50~0.80%/ ℃; Hv:600. |
