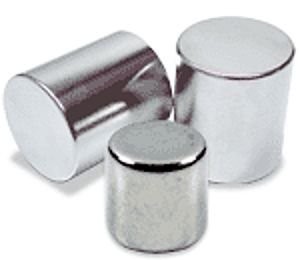

This cylinder type magnets can be in large length.
This cylinder type magnets can be in large length, about 50mm long.
We can supply the rough, so that customers can cut the magnet into the length they need.
sintered cylinder anisotropic ndfeb permanent magnet has been presented above, want more similar products, please click sintered cylinder ndfeb magnet,sintered cylinder ndfeb permanent magnet,Sintered NdFeB magnets.
Magnetic Characteristics And Physical Properties of Sintered NdFeB |
|||||
Properties |
Remanence |
Coercive Force |
Intrinsic Coercive Force |
Max Energy Product |
Max Working Temp |
|
Br |
Hcb |
Hcj |
(BH)max |
Tw |
Grade |
mT(KGs) |
KA/m (KGs) |
KA/m (KOe) |
KJ/m 3 ( MGOe ) |
℃ |
N-30 |
1080-1130 |
≥ 796 |
≥ 955 |
223-247 |
≤ 80 |
(10.8-11.3) |
( ≥ 10) |
( ≥ 12) |
(28-31) |
||
N-33 |
1130-1180 |
≥ 836 |
≥ 955 |
247-270 |
≤ 80 |
(11.3-11.8) |
( ≥ 10.5) |
( ≥ 12) |
(31-34) |
||
N-35 |
1170-1220 |
≥ 868 |
≥ 955 |
263-287 |
≤ 80 |
(11.7-12.2) |
( ≥ 10.9) |
( ≥ 12) |
(33-36) |
||
N-38 |
1220-1250 |
≥ 899 |
≥ 955 |
287-310 |
≤ 80 |
(12.2-12.5) |
( ≥ 11.3) |
( ≥ 12) |
(36-39) |
||
N-40 |
1250-1280 |
≥ 923 |
≥ 955 |
302-326 |
≤ 80 |
(12.5-12.8) |
( ≥ 11.6) |
( ≥ 12) |
(38-41) |
||
N-42 |
1280-1320 |
≥ 923 |
≥ 955 |
318-342 |
≤ 80 |
(12.8-13.2) |
( ≥ 11.6) |
( ≥ 12) |
(40-43) |
||
N-45 |
1320-1380 |
≥ 876 |
≥ 955 |
342-366 |
≤ 80 |
(13.2-13.8) |
( ≥ 11.0) |
( ≥ 12) |
(43-46) |
||
N-48 |
1380-1420 |
≥ 836 |
≥ 876 |
366-390 |
≤ 80 |
(13.8-14.2) |
( ≥ 10.5) |
( ≥ 11) |
(46-49) |
||
N-50 |
1400-1450 |
≥ 860 |
≥ 876 |
382-406 |
≤ 80 |
(14.0-14.5) |
( ≥ 10.8) |
( ≥ 11) |
(48-51) |
||
30M |
1080-1130 |
≥ 796 |
≥ 1114 |
223-247 |
≤ 100 |
(10.8-11.3) |
( ≥ 10) |
( ≥ 14) |
(28-31) |
||
33M |
1130-1180 |
≥ 836 |
≥ 1114 |
247-270 |
≤ 100 |
(11.3-11.8) |
( ≥ 10.5) |
( ≥ 14) |
(31-34) |
||
35M |
1170-1220 |
≥ 868 |
≥ 1114 |
263-287 |
≤ 100 |
(11.7-12.2) |
( ≥ 10.9) |
( ≥ 14) |
(33-36) |
||
38M |
1220-1250 |
≥ 899 |
≥ 1114 |
287-310 |
≤ 100 |
(12.2-12.5) |
( ≥ 11.3) |
( ≥ 14) |
(36-39) |
||
40M |
1250-1280 |
≥ 923 |
≥ 1114 |
302-326 |
≤ 100 |
(12.5-12.8) |
( ≥ 11.6) |
( ≥ 14) |
(38-41) |
||
42M |
1280-1320 |
≥ 955 |
≥ 1114 |
318-342 |
≤ 100 |
12.8-13.2 |
( ≥ 12.0) |
( ≥ 14) |
(40-43) |
||
45M |
1320-1380 |
≥ 995 |
≥ 1114 |
342-366 |
≤ 100 |
(13.2-13.8) |
( ≥ 12.5) |
( ≥ 14) |
(43-46) |
||
48M |
1360-1430 |
≥ 1027 |
≥ 1114 |
366-390 |
≤ 100 |
(13.6-14.3) |
( ≥ 12.9) |
( ≥ 14) |
(46-49) |
||
50M |
1400-1450 |
≥ 1033 |
≥ 1114 |
382-406 |
≤ 100 |
(14.0-14.5) |
( ≥ 13.0) |
( ≥ 14) |
(48-51) |
||
30H |
1080-1130 |
≥ 796 |
≥ 1353 |
223-247 |
≤ 120 |
(10.8-11.3) |
( ≥ 10) |
( ≥ 17) |
(28-31) |
||
33H |
1130-1180 |
≥ 836 |
≥ 1353 |
247-271 |
≤ 120 |
(11.3-11.8) |
( ≥ 10.5) |
( ≥ 17) |
(31-34) |
||
35H |
1170-1220 |
≥ 868 |
≥ 1353 |
263-287 |
≤ 120 |
(11.7-12.2) |
( ≥ 10.9) |
( ≥ 17) |
(33-36) |
||
38H |
1220-1250 |
≥ 899 |
≥ 1353 |
287-310 |
≤ 120 |
(12.2-12.5) |
( ≥ 11.3) |
( ≥ 17) |
(36-39) |
||
40H |
1250-1280 |
≥ 923 |
≥ 1353 |
302-326 |
≤ 120 |
(12.5-12.8) |
( ≥ 11.6) |
( ≥ 17) |
(38-41) |
||
42H |
1280-1320 |
≥ 955 |
≥ 1353 |
318-342 |
≤ 120 |
(12.8-13.2) |
( ≥ 12.0) |
( ≥ 17) |
(40-43) |
||
45H |
1320-1380 |
≥ 963 |
≥ 1353 |
342-366 |
≤ 120 |
(13.2-13.8) |
( ≥ 12.1) |
( ≥ 17) |
(43-46) |
||
48H |
1370-1430 |
≥ 995 |
≥ 1274 |
366-390 |
≤ 120 |
(13.7-14.3) |
( ≥ 12.5) |
( ≥ 16) |
(46-49) |
||
30SH |
1080-1130 |
≥ 804 |
≥ 1592 |
223-247 |
≤ 150 |
(10.8-11.3) |
( ≥ 10.1) |
( ≥ 20) |
(28-31) |
||
33SH |
1130-1170 |
≥ 844 |
≥ 1592 |
247-271 |
≤ 150 |
(11.3-11.7) |
≥ 10.6 |
( ≥ 20) |
(31-34) |
||
35SH |
1170-1220 |
≥ 876 |
≥ 1592 |
263-287 |
≤ 150 |
(11.7-12.2) |
( ≥ 11.0) |
( ≥ 20) |
(33-36) |
||
38SH |
1220-1250 |
≥ 907 |
≥ 1592 |
287-310 |
≤ 150 |
(12.2-12.5) |
( ≥ 11.4) |
( ≥ 20) |
(36-39) |
||
40SH |
1250-1280 |
≥ 939 |
≥ 1592 |
302-326 |
≤ 150 |
(12.5-12.8) |
( ≥ 11.8) |
( ≥ 20) |
(38-41) |
||
42SH |
1280-1320 |
≥ 995 |
≥ 1592 |
318-342 |
≤ 150 |
(12.8-13.2) |
( ≥ 12.5) |
( ≥ 20) |
(40-43) |
||
45SH |
1320-1380 |
≥ 1003 |
≥ 1592 |
342-366 |
≤ 150 |
(13.2-13.8) |
( ≥ 12.6) |
( ≥ 20) |
(43-46) |
||
28UH |
1020-1080 |
≥ 764 |
≥ 1990 |
207-231 |
≤ 180 |
(10.2-10.8) |
( ≥ 9.6) |
( ≥ 25) |
(26-29) |
||
30UH |
1080-1130 |
≥ 812 |
≥ 1990 |
223-247 |
≤ 180 |
(10.8-11.3) |
( ≥ 10.2) |
( ≥ 25) |
(28-31) |
||
33UH |
1130-1170 |
≥ 852 |
≥ 1990 |
247-271 |
≤ 180 |
(11.3-11.7) |
( ≥ 10.7) |
( ≥ 25) |
(31-34) |
||
35UH |
1180-1220 |
≥ 860 |
≥ 1990 |
263-287 |
≤ 180 |
(11.8-12.2) |
( ≥ 10.8) |
( ≥ 25) |
(33-36) |
||
38UH |
1220-1250 |
≥ 907 |
≥ 1990 |
287-310 |
≤ 180 |
(12.2-12.5) |
( ≥ 11.4) |
( ≥ 25) |
(36-39) |
||
30EH |
1080-1130 |
≥ 812 |
≥ 2388 |
223-247 |
≤ 200 |
(10.8-11.3) |
( ≥ 10.2) |
( ≥ 30) |
(28-31) |
||
33EH |
1130-1170 |
≥ 812 |
≥ 2388 |
247-271 |
≤ 200 |
(11.3-11.7) |
( ≥ 10.2) |
( ≥ 30) |
(31-34) |
||
35EH |
1170-1220 |
≥ 876 |
≥ 2388 |
263-287 |
≤ 200 |
(11.7-12.2) |
( ≥ 11.0) |
( ≥ 30) |
(33-36) |
||
30AH |
1080-1130 |
≥ 812 |
≥ 2785 |
223-247 |
≤ 240 |
(10.8-11.3) |
( ≥ 10.2) |
( ≥ 35) |
(28-31) |
||
33AH |
1130-1170 |
≥ 812 |
≥ 2785 |
247-271 |
≤ 240 |
(11.3-11.7) |
( ≥ 10.2) |
( ≥ 35) |
31-34 |
||
|
|
|
|
|
|
NOTES: |
The above-mentioned data of magnetic parameters and physical properties ars given at room temperature. |
The maximum service temperature of magnet is changeable due to the ratio length and diameter and |
Environmental factors. |
Density: 7.4~7.6g/cm 3 ; α Br:-0.09~0.13%/ ℃, β Hcj: -0.50~0.80%/ ℃; Hv:600. |
