Vertical Coils Winding Machine ND-LR100
Products Visitors:777

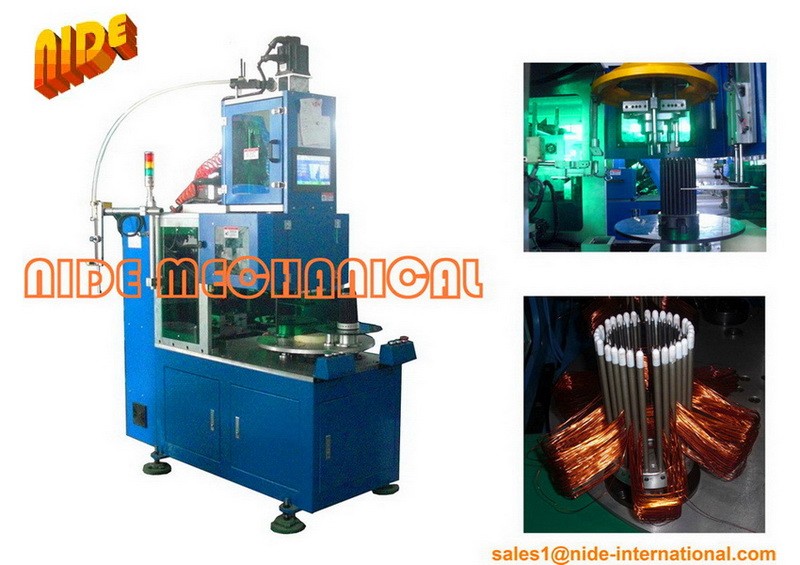

ND-LR100 automatic vertical coils winding machine

Especially suitable for coils winding in the stator of high slot filling rate but small slot notch;


Single-head and double-station automatic winding machine; It automatic put the coil into transfer former orderly. Winding mode such as automatic skip, automatic cutting and automatic indexing can be finished at a time successively; parameter could be set in human-machine interface, winding tension is adjustable; obtain continuous/discontinuous winding way and meets the 2 poles,4 poles and 6 poles coils winding,

1. Max winding speed

3000rpm

2. Wire diameter

0.2-1.2mm

3. Cycle time

 ≤0.5s/wire

Speed 1500~2000rpm, ≤0.5;

Speed 3000rpm, ≤0.2

4. Flier track

OD200mm

5. Transfer number

2-6 section

4. Power

380V-50HZ

5. Air pressure

0.5Mpa

6. Weight

1100kgs

7. Dimension

1800 X1100 X2200mm
