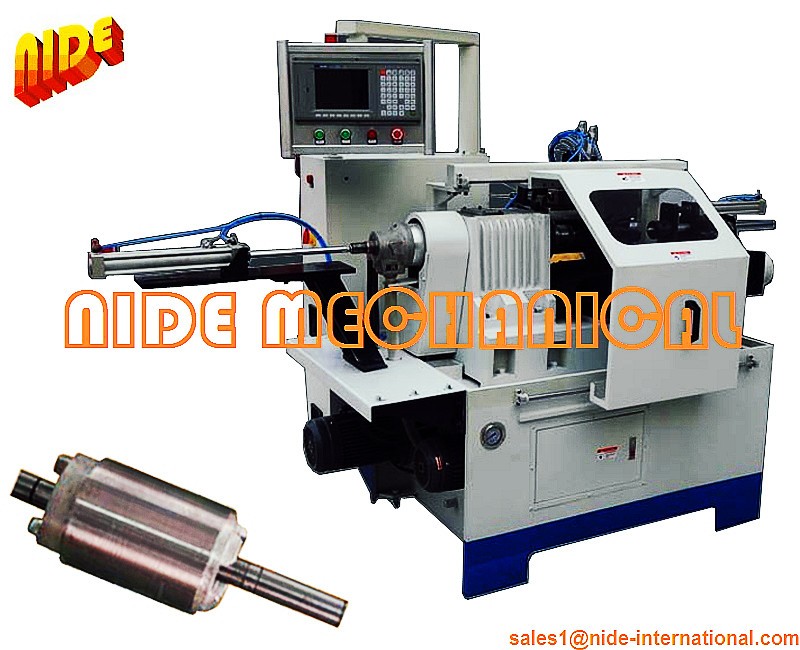

Rotor Turning Machine ND-JC100
Rotor Turning Machine ND-JC100
Original Image
Products Visitors:837


ND-JC100 rotor turning machine

Suitable for turning rotors in high precision;

working station machine; It is characterized by high precision, stable rotation, big turning value, good finish, less taper and not requiring belt replacement.

1. Max shaft diameter

42mm

2. Max turning value

1.5mm

3. X axis stroke

≤300mm

4. Z axis stroke

≤300mm

5. X axis positioning precision

+/-0.02mm

6. Z axis positioning precision

+/-0.02mm

7. X axis speed

300mm/s

8. Z axis speed

100mm/s

9. Clamping way

Pneumatic holly revolution cylinder

10. Processing precision

+/-0.02/100mm

11. Working efficiency

5-60S

12. Power

380V/50Hz, 9KW

13. Pneumatic motor power

1.5KW

14. Main spindle motor power

4.5KW

15. Pneumatic system pressure

4-6MPa

16.Weight

800kg

17.Dimension

2100 X 850 X1580mm
