ND-DR600
ND-DR600
Original Image
Products Visitors:730

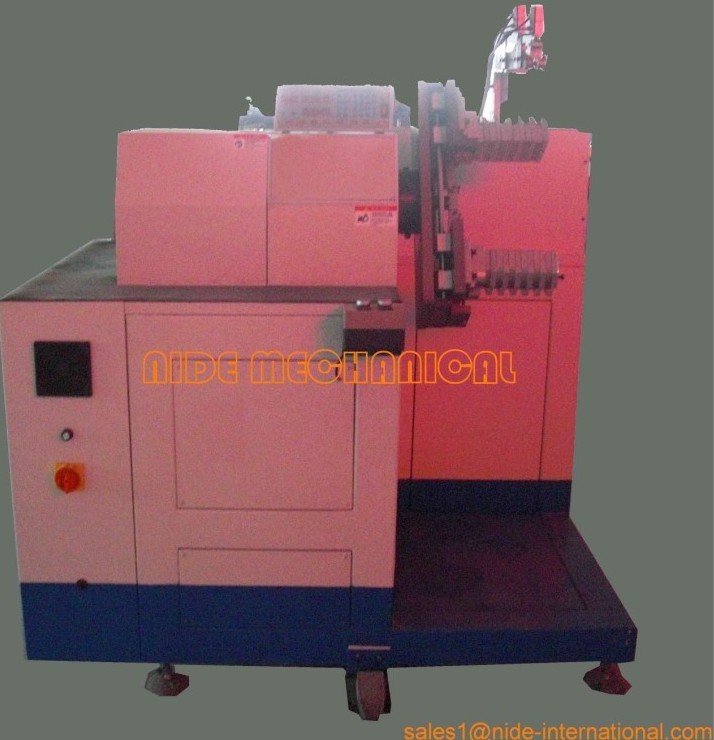

ND-DR600 horizontal coils winding machine

Suitable for coils winding of big power motor;


The tooling could be auto extend and retract. Therefore, it is not need to discharge the tooling when taking out the finished coil. It could produce different dimension coil which is for same series size stator by adjusting the tooling. Auto winding, auto winding displacement, slot stride, auto passing wax tube and output could be set in the controller.

1. Wire diameter

0.4-1.5mm

2. Swing diameter

≤600mm

3. Winding displacement distance

400mm

4. wire numbers in parallel

≤20 pieces

5. Effective tooling length

≤400mm

6. Power

220V/50Hz, 1.5KW (Reduction rate 1:5)

7. Weight

950kg

8. Dimension

1500 X 1700 X1550mm
