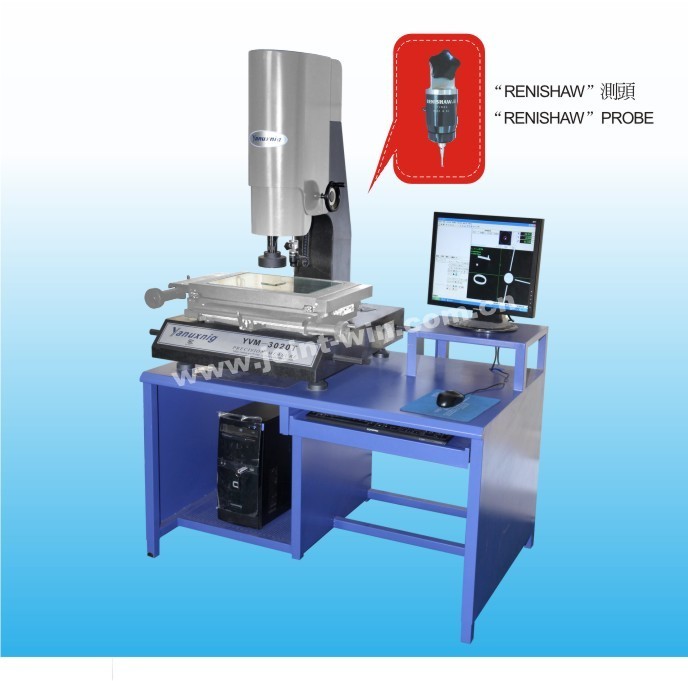

Item            Model

YVM-1510T

YVM-2010T

YVM-3020T

YVM-4030T

YVM-5040T

X.Y.Z axis Travel (mm)

150*100*220

200*100*220

300*200*220

400*300*220

500*400*220

X.Y.Z Resolution

0.001mm

X.Y Axis Accuracy

(3+L/200)um

Repeatability

3um

Measuring Way

Video + probe

Magnification

24-156X (12-312X is available)

CCD

430,000 Pixels high definition Sony Chip CCD

Objectives

High definition 0.7~4.5X zoom lens

Measuring probe

British" Renishaw" measuring touch probe: Φ2mm

Working distance

115mm (video)

Computer (Option)

Lenovo Computer with "Celeron" 4 CPU, 160G hard drive, 1G memory, 17" LCD monitor

Measuring Software

YR-T measuring software

Instrument Base

000 grade stable granite base

Illumination

Surface and contour illumination both use brightness adjustable LED shadowless lamp

Dimension (L*W*H) (mm)

500*550*950

500*550*950

700*650*950

980*750*950

1050*800*950

Machine Weight

170

180

220

380

430
