Model

Item

YVM-1510CSPC

YVM-2010CSPC

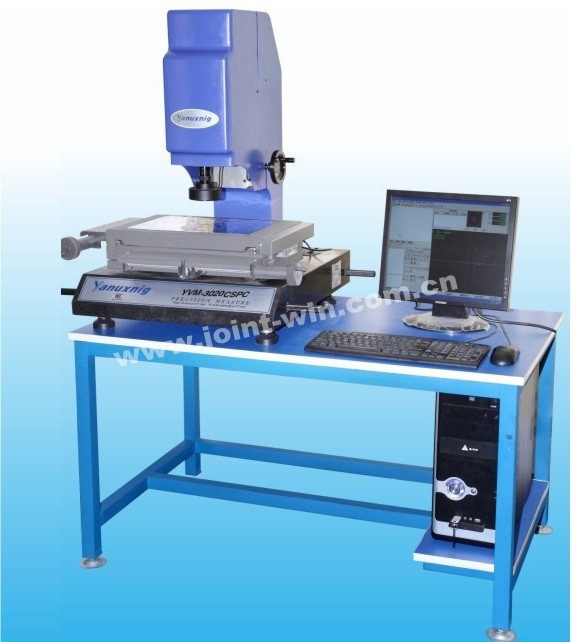

YVM-3020CSPC

YVM-4030CSPC

YVM-5040CSPC

X.Y axis Travel (mm)

150*100

200*100

300*200

400*300

500*400

Z axis Focusing Travel

160mm

160mm

160mm

300mm

200mm

X.Y Resolution

0.001mm

X.Y Axis Accuracy

 (3+L/200)um

Objectives

High definition 0.7~4.5X zoom lens

Total Magnification

24~156X (12~312X is available)

View of Field

10~1.6mm

Repeatability

3um

CCD

430,000 Pixels high definition Sony Chip CCD

Computer (Option)

Lenovo Computer with "Celeron" 4 CPU, 160G hard drive, 1G memory, 17" LCD monitor

Measuring Software

YR-C measuring software

Instrument Base

000 grade stable granite base

Illumination

Surface and contour illumination both use brightness adjustable LED shadowless lamp

Dimension(L*W*H) mm)

550*500*950

550*500*860

600*900*680

960*820*940

960*820*940

Machine Weight (Kgs)

140

150

190

350

400
