Model

Item

YVM-1510Z

YVM-2010Z

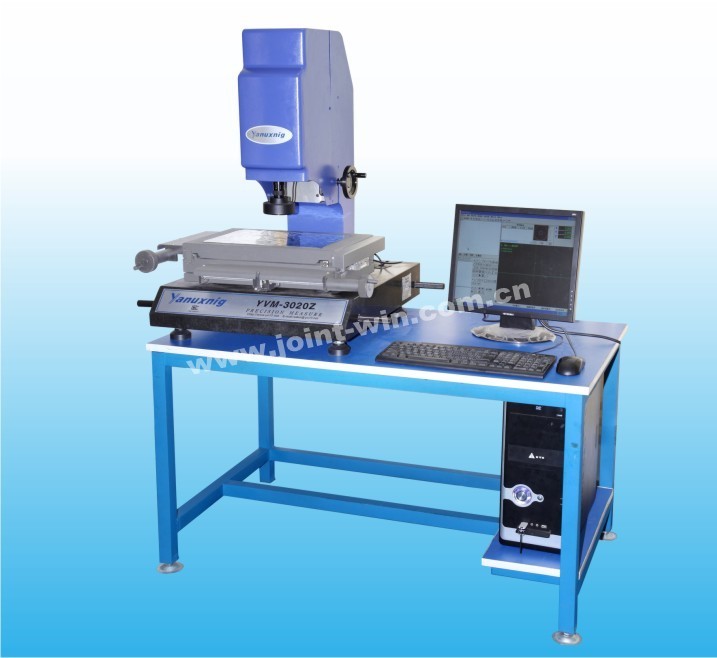

YVM-3020Z

YVM-4030Z

YVM-5040Z

X.Y axis Travel (mm)

150*100

200*100

300*200

400*300

500*400

Z axis Focusing Travel

160mm

160mm

160mm

300mm

200mm

X.Y Resolution

0.001mm

X.Y Axis Accuracy

 (3+L/200)um

Objectives

American" Navitar" High Definition 0.7~4.5X Zoom Lens

Total Magnification

24X~156X (12X~312X is available)

View of Field

10~1.6mm

Repeatability

3um

CCD Camera

Japan "Sony" 1/2" 0.43Mpixel High Definition Color CCD Camera

Computer (Option)

Lenovo Computer:  "Celeron" 4 CPU, 160G Hard Drive, 1G memory, 17" LCD monitor

Measuring Software

YR-C Measuring Software

Instrument Base

000 Grade Stable Granite Base

Illumination

Surface and Contour Illumination Both use Brightness Adjustable LED Shadowless Lamp

Dimension (L*W*H) (mm)

550*500*950

550*500*860

600*900*680

960*820*940

960*820*940

Machine Weight (Kgs)

140

150

190

350

400
