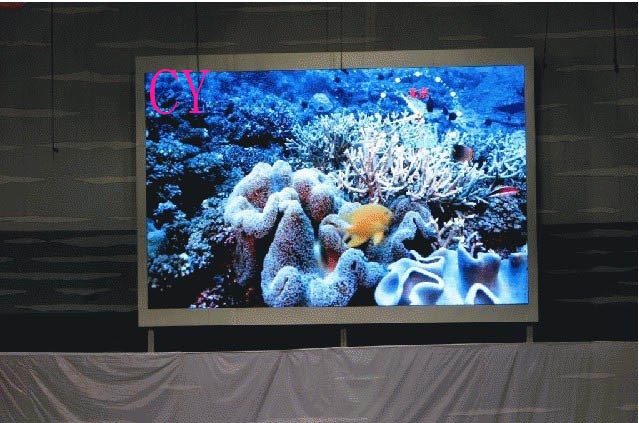

Type PH5
Pixel pitch mm 5 Pixel density dots / ㎡ 40,000 Pixel composition 1R1G1B Module size (L * W) mm 160 * 80 Module resolution (L * W) dots 32 * 16 Screen body weight kg / m ≤ 50 Viewing angle 160 ° / 160 ° Screen thickness mm ≤ 165 Average power W / m 900 Maximum power W / m 2500 Drive 1 / 8 scan constant current drive Frame rate 60Hz ≥ 300Hz refresh rate Grayscale / color 1024/10.7 billion White Balance Brightness cd / ㎡ ≥ 3000 Power supply AC220V/50Hz (± 10%) or AC110V/50Hz (± 10%) Ambient temperature -10 ℃ ~ +45 ℃ Life of ≥ 10 million hours Control point ratio <3 / 100, 000 MTBF> 10,000 hours
