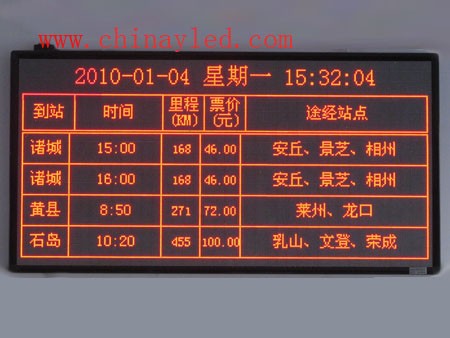

    Indoor LED monochrome screen advertising
    Indoor LED monochrome screen advertising
    Original Image
    Products Visitors:730


    A, Ф5 Indoor single red display technology parameters
    Single color parameter
    Pixel pipe diameter 5 mm pixel
    Point spacing 7.62mm
    Pixel pipe Origin Taiwan
    Color 1 red light-emitting points
    Density of 17220 points / m2
    Single-color Red
    Unit plate element board size 488mm × 244mm
    The ranks of several modules wide × high 32 points 64 points
    2048 points / block
    Each screen displays the entire screen of net display area (length) m × (high) m = m2
    Board using the unit number (long) block × (H) block = block
    Screen total point number (long) point × (H) points = points
    Each screen display words (long) words × (H) word = word
    Monochrome text display content
    Screen body weight 30kg/m2
    Screen thickness 10cm
    Frame-specific frame structure TOP
    Operating voltage 220V power supply
    Maximum power consumption ≤ 120W/m2
    Control
    P3 or above the host system control
    Control mode: asynchronous control (SCM)
    Display Control mode: asynchronous mapping control
    WINDOWS 98 operating system
    The main technical parameters of drive 1 / 16 scan driver
    Refresh rate ≥ 120 frames / sec.
    Frame rate ≥ 60 frames / sec.
    ≥ 120cd/m2 brightness
    Brightness adjustment: adjust the software
    Grayscale / Color: 256
    Best viewing angle ± 60 degrees
    Best line of sight 5 ~ 40m
    Within the effective communication distance 120m
    Operating temperature -20 ℃ ~ +60 ℃
    Relative humidity ≤ 85%
    Software LED universal player software (mdk
