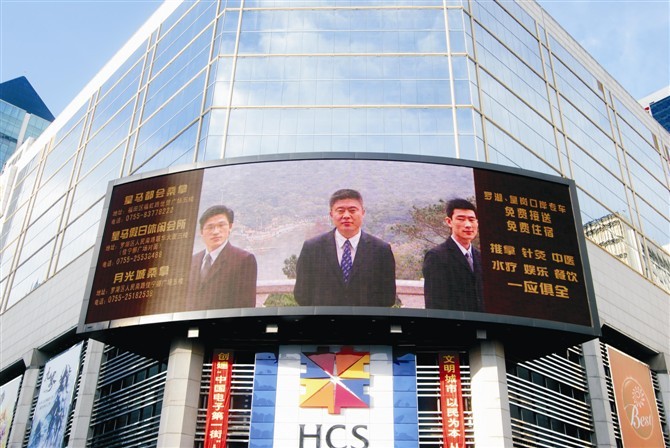

P16 outdoor full color
(1) LED lamp components (1) Schematic Structure Description: Each pixel in a 2 red 1 pure green 1 pure blue total 4 LED lamp. (2) Professional analysis Professional analysis content analysis project number 1 color analysis of the effect of color to achieve the best white balance, color brightness of the LED light, there are strict requirements, including the color of the color brightness ratio R: G: B / 3:6:1. Item No. 2 center wavelength of light chip manufacturers A pure red LED 627nm 600mcd Taiwan National League 2 pure green LED 525nm 2000mcd U.S. AXT 3 blue-LED 470nm 350mcd U.S. AXT (2) Screen Parameters Description Technical parameters 1, the pixel control unit box Pixel pitch: 16mm Physical density: 3906 dots / m2 Pixel pipe Origin: Red: Taiwan National League green, blue tube: U.S. AXT Color light-emitting points: 2R1G1B Base Color: Pure red + green + blue-pure Box Size: 512mm × 512mm The ranks of the physical module number: width × high 32 points 32 points Physical resolution: 1024 points / box Box Weight: 40kg/m2 2, display the entire screen in the display area of the body: (L) 5.12m × (high) 3.072m = 15.73m2 Unit case volume: (L) 10 × (H) 6 = 60 Physical Resolution: (L) 320 × (H) 192 points = 61440 points Best viewing distance: 15 ~ 500m Best viewing angle: horizontal 140 degrees, 90 degrees vertical Environment Temperature: Storage -35 ℃ ~ +85 ℃ Work -20 ℃ ~ +50 ℃ Relative humidity: ≤ 90 ~ 95% Screen thickness: ≤ 12cm + maintenance thickness 70CM 3, power supply voltage: 220V ± 10% Average power consumption: 330 ~ 440W/m2 Maximum power consumption: ≤ 1100W/m2 4, the control system controls the host: the host association to open days or more or the same grade computer Operating system: WIN 98 / 2000 / NT / XP Control mode: Synchronization control Graphics card: DVI graphics card Edit Card: PCTV cards 5, the main technical parameters 1)-driven devices: LED device-specific driver 2) Drive mode: constant current drive 3) Scan frequency: ≥ 480 frames / sec. 4) Refresh rate: ≥ 180 frames / sec. 5) Gray / Color: 16 384, can display 16.7M colors 6) White balance brightness: ≥ 7000cd/m2 7) Brightness adjustment: adjustable 100 adjustable software 8) video signal: PAL / NTSC 9) video input / output: eight input / eight output 10) control system: DVI card + control card + full-color fiber-optic transmission 11) MTBF: ≥ 10000 12) Life: 100,000 hours 13) flatness: any adjacent pixels ≤ 0.5mm; Module splicing gap <1mm; 14) Uniformity: pixel light intensity, brightness uniformity module 15) Power Switch: Automatic Switch 16) Switching Power Supply Load: 5V/40A 17) Computer display mode: 800 × 600; 1024 × 768 18) the effective communication distance: ≥ 2000m (optical transmission) 7, software, LED universal player software (MDK)
