Our company produces electric winch at high quality standard, with features below.
· high hp motor, with powerful torque force.
· 500A solenoid, 10 times life longer than regular ones.
· full steel gears, cold extrusion craft, to meet toughest pulling demand.
· transmission shaft is precision processed, very low noises.
· 100% load-hold BILATERAL brake, no stuck.
· insulated winch design, well working in water.
· 100% quality control on testing pulling capacity and function.
· we guaranty every winch is well workmanship.
· for winch parts due to quality issue we have 100% free parts supply.
· warranty time one year and half.
· we guaranty you fast delivery time.

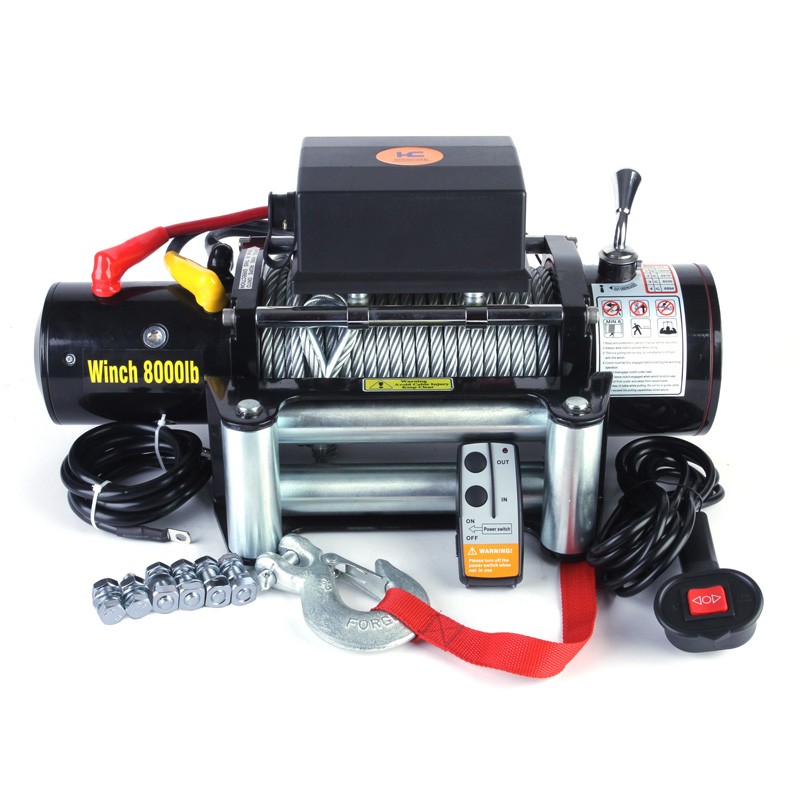

SC8.0 12V or 24V
|
Single line rated pull |
8000lb(3629kg) |
|
Motor |
5.2 hp/3.8kw.Series Wound 12V |
|
Main body |
Sealed |
|
Control |
Remote switch,12ft(3.7m)lead |
|
Remote Control |
Included |
|
Gear train |
3 Stage Planetary |
|
Gear reduction ratio |
230.4:1 |
|
Clutch |
Sliding ring gear |
|
Braking Action |
Automatic braking action in the drum |
|
Cable |
28m of 8.1mm diameter |
|
Fairlead |
4-way roller fairlead |
|
Battery Recommended |
650CCA minimum for winching |
|
Battery Leads |
2 gauge,72"(1.83mm) |
|
Finish |
Powder coating |
|
Weight |
N.W. 35kgs G.W 37kgs |
|
Overall dimensions |
(L*W*H) 518x160x214mm |
|
Mounting Bolt Pattern |
10” x 4.5” (254x114.3mm) |
8000LBS LINE SPEED AND AMP DRAW (FIRST LAYER)
|
Line pull lb(kg) |
Line speed ft/min(m/min) |
Current(A) |
|
0 |
22(6.8) |
60 |
|
2000(907) |
15.7(4.8) |
113 |
|
4000(1814) |
12(3.6) |
184 |
|
6000(2721) |
9(2.8) |
228 |
|
8000(3629) |
6.5(2) |
296 |
8000LBS LINE PULL AND CABLE CAPACITY
|
Layer of cable |
1 |
2 |
3 |
4 |
|
|
Rated line pull per layer |
Lbs |
8000 |
6510 |
5500 |
4750 |
|
Kgs |
3629 |
2967 |
2495 |
2167 |
|
|
Cumulative Cable capacity |
Ft |
23.3 |
47 |
80 |
92 |
|
M |
7.1 |
14.5 |
24 |
28 |
|
Detail features to Note:
1. Motor
Heavy duty winch motor, with high torque force, delivers plenty of power.
Motor is sealed and insulated, well working under water.
2. Gears
Gears are full steel, crafted with cold extrusion, with great toughness.
3. Keyway cam (Rotating clutch)
Free and easy operation of engagement and free spool.
4. Transmission shaft
Transmission shaft is precision machinery made, strong and perfectly straight, to reduce vibration with break and prolong its life.
5. Bilateral break
Or called two way break. 100% automatically load-hold bilaterally break and absolutely without stuck!
