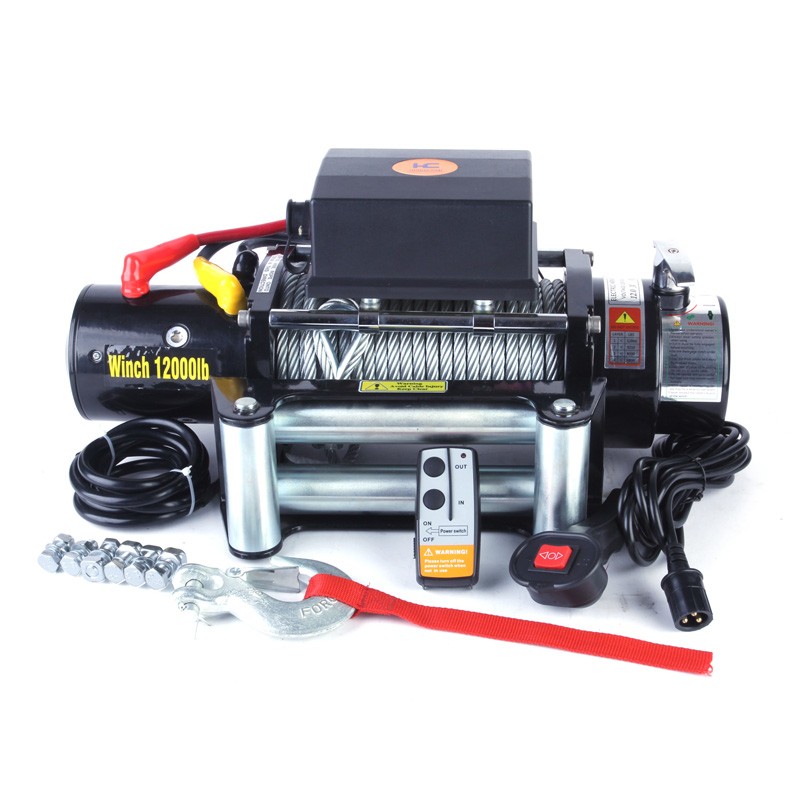

SC12.0X 12V or 24V
|
Single line rated pull |
12000LB(5443kg) |
|
Motor |
6.6 hp/4.85kw.Series Wound |
|
Main body |
Sealed |
|
Control |
Remote switch,12ft(3.7m)lead |
|
Remote Control |
Included |
|
Gear train |
3 Stage Planetary |
|
Gear reduction ratio |
191:1 |
|
Clutch |
Keyway Cam |
|
Braking Action |
Automatic braking action in the drum |
|
Cable |
28m of 9.1mm diameter |
|
Fairlead |
4-way roller fairlead |
|
Battery |
Recommended: 650CCA minimum for winching |
|
Battery Leads |
2 gauge,72"(1.83mm) |
|
Finish |
Powder coating |
|
Weight |
N.W. 36kgs G.W 38kgs |
|
Overall dimensions |
(L*W*H) 526.3x160x179mm |
|
Mounting Bolt Pattern |
10” x 4.5” (254x114.3mm) |
12000LBS LINE SPEED AND AMP DRAW (FIRST LAYER)
|
Line Pull
|
Lbs |
NO LOAD |
2000 |
4000 |
6000 |
8000 |
10000 |
12000 |
|
kgs |
909 |
1814 |
2721 |
3629 |
4536 |
5443 |
||
|
Line Speed
|
ft/min |
34.40 |
20.60 |
15.19 |
12 |
9.84 |
8.07 |
7.15 |
|
m/min |
10.82 |
6.28 |
4.63 |
3.66 |
3.0 |
2.46 |
2.18 |
|
|
Motor Current |
amps |
67 |
131 |
198 |
261 |
320 |
350 |
390 |
12000LBS LINE PULL AND CABLE CAPACITY
|
Layer of cable |
1 |
2 |
3 |
4 |
|
|
Rated line pull per layer |
Lbs |
12000 |
9210 |
8030 |
6894 |
|
Kgs |
5443 |
4178 |
3642 |
3123 |
|
|
Cumulative Cable capacity |
Ft |
21.3 |
40 |
72.0 |
92 |
|
M |
6.5 |
12 |
22 |
28 |
|
Winch features.
1. High torque force motor, delivers plenty of power.
2. Efficient power efficacy, low amp draws.
3. Smooth winching, very low noises.
4. 2 ways break, 100% immediate stop to load hold.
5. Full steel gears, toughened gears parts for toughest pulling demand.
6. Well working in water.
7. 100% testing on every winch pulling capacity and function.
8. Warranty parts free supply.
FAQ 1
What are the advantages of your winch clutch system?
: We have 2 kinds of clutch systems, one is sliding ring gear, the other is key way cam clutch. Unlike traditional sliding ring gear, ours has special guide teeth to ensure easy and quick engagement operation for both professional users and beginners. Key way cam clutch is also called rotating clutch, 360° turning to achieve engagement and disengagement. Gears are made of steel, both clutch systems are very reliable.
FAQ 2
: What are the advantages of your winch brake system?
Traditional brake system is one way load-hold, easily get stuck or slipped in tough recovery conditions. While our brake is with quill roller design, two way load-hold, no stuck or slipping. Therefore, our winch has more flexible installation, and performs immediate action stop. Every winch is tested on pulling capacity and function, good quality is ensured.
