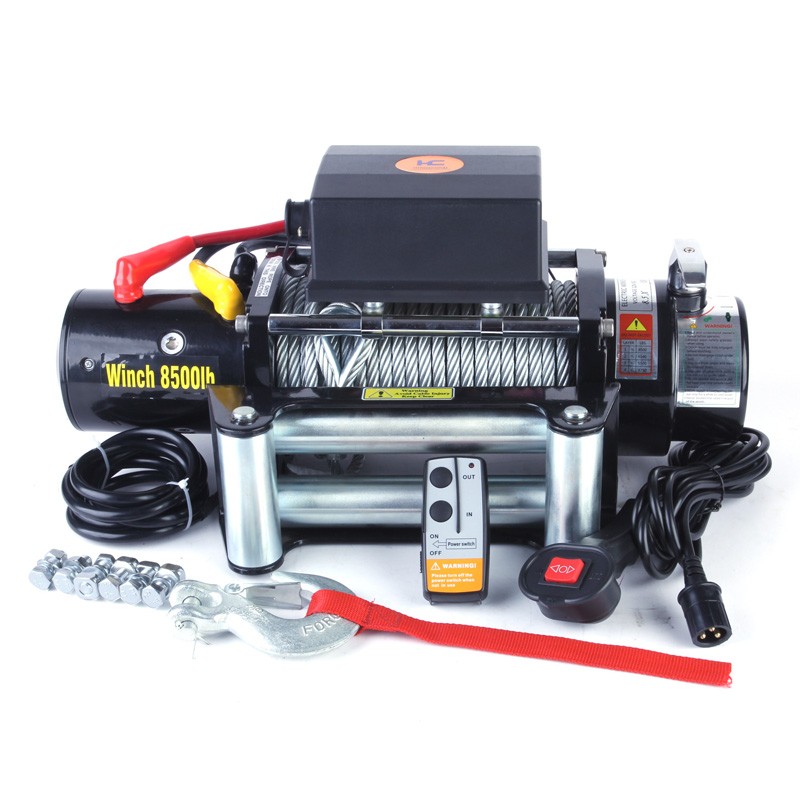

SC8.5X 12V or 24V
l Heavy duty series wound motor, delivers high torque force.
l Gears are made of 20CR steel, crafted with cold extrusion and heat treatment, to meet toughest pulling demand.
l Bilateral roller brake, load-hold in two directions, offers more installation options.
l 360°rotating clutch makes engagement and disengagement much easier.
l Precision machining transmission shaft lowers noises when winching.
l Sealed winch body, well working in water.
l Every winch is tested on pulling capacity and function.
Specification
|
Single line rated pull |
8500lb(3856kg) |
|
Motor |
5.6 hp/4.1kw.Series Wound |
|
Main body |
Sealed |
|
Control |
Remote switch,12ft(3.7m)lead |
|
Remote Control |
Included |
|
Gear train |
3 Stage Planetary |
|
Gear reduction ratio |
191:1 |
|
Clutch |
Keyway Cam |
|
Braking Action |
Automatic braking action in the drum |
|
Cable |
28m of 8.1mm diameter |
|
Fairlead |
4-way roller fairlead |
|
Battery |
Recommended: 650CCA minimum for winching |
|
Battery Leads |
2 gauge,72"(1.83mm) |
|
Finish |
Powder coating |
|
Overall dimensions |
(L*W*H) 526.3x160x179mm |
|
Mounting Bolt Pattern |
10” x 4.5” (254x114.3mm) |
8500LBS LINE SPEED AND AMP DRAW (FIRST LAYER)
|
Line Pull |
Lbs |
NO LOAD |
2000 |
4000 |
6000 |
8500 |
|
kgs |
909 |
1814 |
2721 |
3856 |
||
|
Line Speed |
ft/min |
25 |
17.91 |
12.30 |
10.33 |
8.54 |
|
m/min |
9.45 |
5.46 |
3.75 |
3.15 |
2.05 |
|
|
Motor Current |
amps |
60 |
113 |
184 |
228 |
301 |
8500LBS LINE PULL AND CABLE CAPACITY
|
Layer of cable |
1 |
2 |
3 |
4 |
|
|
Rated line pull per layer |
Lbs |
8500 |
6620 |
5630 |
4850 |
|
Kgs |
3856 |
2980 |
2534 |
2183 |
|
|
Cumulative Cable capacity |
Ft |
23.3 |
47 |
80 |
92 |
|
M |
7.1 |
14.5 |
24 |
28 |
|
Weight and Package
Net Weight: 34KG
Gross Weight: 36KG
Package: Honeycomb carton 57x19.5x33.5cm
Foam carton 60x34x24.5cm
