Specification:

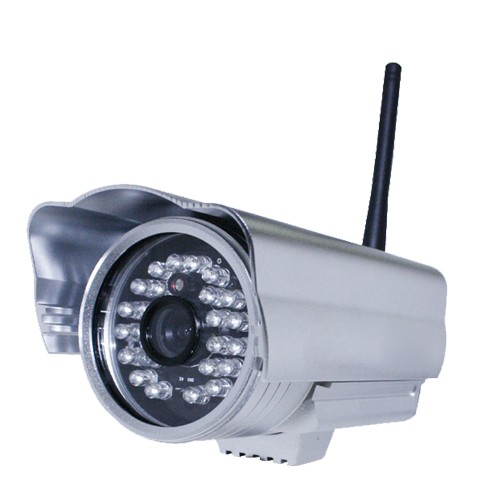

Model: PUB-V0233-WS-IR

 Image  Sensor

 Image Sensor

1/4" Color CMOS Sensor

 Display Resolution

640 x 480 Pixels(300k Pixels)

 Lens

f: 6 mm, F:2.0 (IR Lens)    (3.6mm lens optional)

 Mini. Illumination

0.5Lux

 Lens

 Lens Type

Glass Lens

 Viewing Angle

60 Degree               (3.6mm lens is 90Degree)

 Video

 Image Compression

MJPEG

 Image Frame Rate

15fps(VGA),30fps(QVGA)

 Resolution

640 x 480(VGA), 320 x 240(QVGA)

 Flip Mirror Images

Vertical / Horizontal

 Light Frequency

50Hz, 60Hz or Outdoor

 Video Parameters

Brightness, Contrast

 Communication

 Ethernet Interface

Build in 10/100Mbps,Auto MDI/MDIX , RJ-45

 Supported Protocol

HTTP,FTP,TCP/IP, UDP, SMTP, DHCP, PPPoE, DDNS, UPnP, GPRS

 Wireless Standard

IEEE 802.11b/g

 Data Rate

802.11b: 11Mbps (Max.), 802.11g: 54Mbps (Max.)

 Wireless Security

WEP & WPA WPA2 Encryption

 Physical

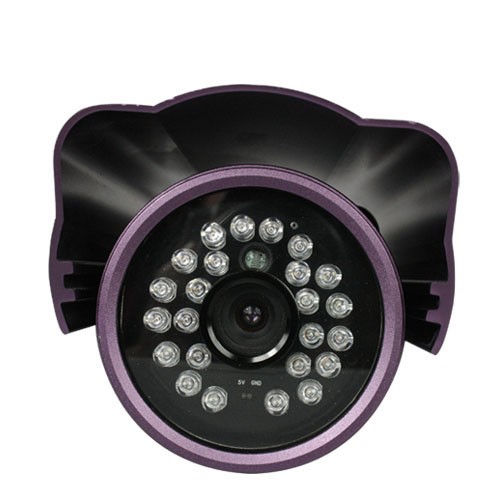

 Infrared Light

24 IR LEDs, Night visibility up to 20 meters

 Dimension

155 (L) x82(W) x82mm(H)

 Gross Weight

1200g

 Color Box

250*150*140mm

 Net Weight

1000g ( accessories included)

 Power

 Power Supply

DC 5V/2.0A (EU,US,AU adapter or other types optional)

 Power Consumption

5 Watts (Max.)

 Environment

 Operate Temper.

0° ~ 55°C  (14°F ~ 131°F)

 Operating  Humidity

20% ~ 85% non-condensing

 Storage Temper.

-10°C ~ 60° (14°F ~ 140°F)

 Storage Humidity

0% ~ 90% non-condensing

   PC System Requirements

 CPU

2.0GHZ or above (suggested 3.0GHz)

 Memory Size

256MB or above (suggested 1.0GHz)

 Display Card

64M or above

 Supported OS

Microsoft Windows 2000/XP/Vista/7

 Browser

IE6.0/7.0/8.0/Firefox/Safari/Google chrome or other standard browsers

  Certification

 CE, FCC, RoHS

  Warranty

 Limited 1-year warranty
