Specification:

Model: PUB-V011-WS-IRC

Image Sensor

Image Sensor

1/4" Color CMOS Sensor

Display Resolution

640 x 480 Pixels(300k Pixels)

Lens

f: 6 mm, F:2.0 (IR Lens) (3.6mm lens optional)

Mini. Illumination

0.5Lux

Lens

Lens Type

Glass Lens

Viewing Angle

60 Degree (3.6mm lens is 90Degree)

Audio

Input

Built-in Microphone

Output

Built-in Speaker

Audio Compression

ADPCM

Video

Image Compression

MJPEG

Image Frame Rate

15fps(VGA),30fps(QVGA)

Resolution

640 x 480(VGA), 320 x 240(QVGA)

Flip Mirror Images

Vertical / Horizontal

Light Frequency

50Hz, 60Hz or Outdoor

Video Parameters

Brightness, Contrast

Communication

Ethernet Interface

Build in 10/100Mbps,Auto MDI/MDIX , RJ-45

Supported Protocol

HTTP,FTP,TCP/IP, UDP, SMTP, DHCP, PPPoE, DDNS, UPnP, GPRS

Wireless Standard

IEEE 802.11b/g

Data Rate

802.11b: 11Mbps (Max.), 802.11g: 54Mbps (Max.)

Wireless Security

WEP & WPA WPA2 Encryption

Physical

Pan/Tilt Angle

Horizontal:270° & Vertical: 120°

Infrared Light

10 IR LEDs, Night visibility up to 10 meters

Alarm Input

1 Channel on/off Input

Alarm Output

1 Channel relay Output

Dimension

100(L) x100(W) x120mm(H)

Gross Weight

App. 750g

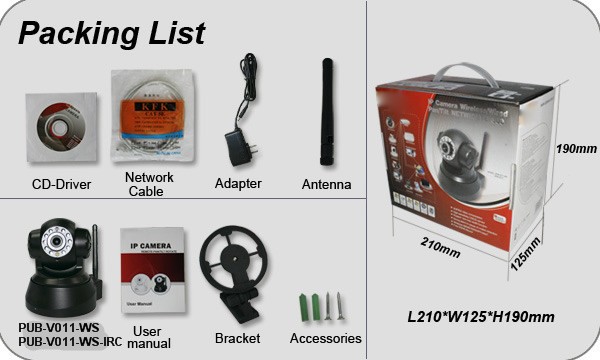

Color Box

210 x 130 x 190 mm

Net Weight

App. 550g

Power

Power Supply

DC 5V/2.0A (EU,US,AU adapter or other types optional)

Power Consumption

5 Watts (Max.)

Environment

Operate Temper.

0° ~ 55°C (14°F ~ 131°F)

Operating Humidity

20% ~ 85% non-condensing

Storage Temper.

-10°C ~ 60° (14°F ~ 140°F)

Storage Humidity

0% ~ 90% non-condensing

PC System Requirements

CPU

2.0GHZ or above (suggested 3.0GHz)

Memory Size

256MB or above (suggested 1.0GHz)

Display Card

64M or above

Supported OS

Microsoft Windows 2000/XP/Vista/7

Browser

IE6.0/7.0/8.0/Firefox/Safari/Google chrome or other standard browsers

Certification

CE, FCC, RoHS

Warranty

Limited 1-year warranty
