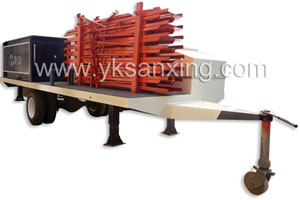

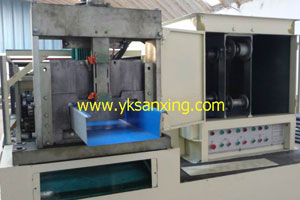

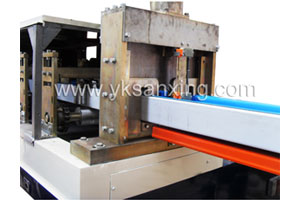

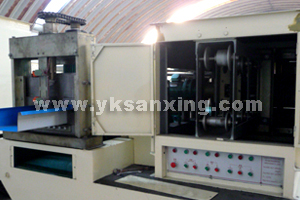

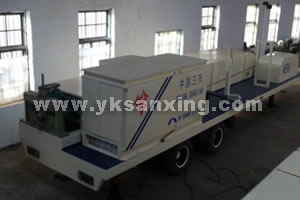

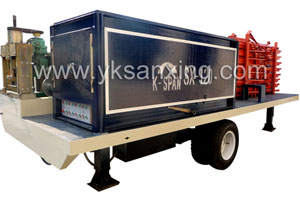

Main Technical Specification of No-girder K-span Arch Sheet Roll Forming Machine ABM
Size: 9300mm × 2250mm × 2300mm
Total weight: about 11000KG
Main motor power: 15.7KW forming power is 7.5kw; bending power is 3.0kw; cutting power is 3.0kw; conical power is 2.2kw
Working speed: Straight sheet: 15m/min
Arch sheet: 13m/min
Sewing: 6m/min
Material of rollers: 45# steel, quenched HRC 58-62
Material of roller shafts: 45# steel, adjusted
Material of cutting blade: Cr12 steel (Taiwan Airline Technique)
PLC Type: Germany Siemens
Step of rollers: 13 steps
Feeding width: 600mm
Effective width: 305mm
The depth of the groove: 140mm
Thickness of the coil: 0.6-1.5mm
Operating factor of the panel: 51%
Proper span: ≤18m
