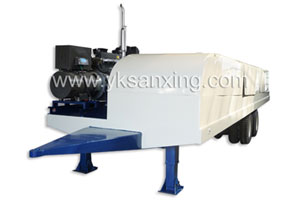

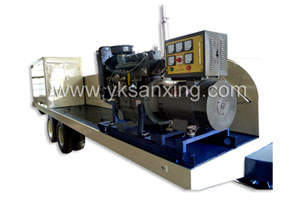

Main Technical Specification of No-girder K-span Arch Sheet Roll Forming Machine ABM
Size: 8900mm × 2250mm × 2300mm
Total Weight: about 13000KG
Main Motor Power: 16.7KW forming power is 7.5kw; bending power is 4.0kw; cutting power is 3.0kw; conical power is 2.2kw
Working Speed: Straight sheet: 15m/min
Arch sheet: 13m/min
Sewing: 6m/min
Material of rollers: 45# steel, quenched HRC 58-62
Material of roller shafts: 45# steel, adjusted
Material of cutting blade: Cr12 steel (Taiwan Airline Technique)
Step of rollers: 13 steps
Feeding Width: 1000mm
Effective Width: 610mm
The depth of the groove: 243mm
Thickness of the coil: 0.6-1.5mm
Operating factor of the panel: 61%
Proper span: ≤39m
