SX-1250-800 No-girder K-span Arch Sheet Roll Forming Machine

Products Visitors:1370

Product Name:SX-1250-800 No-girder K-span Arch Sheet Roll Forming Machine
Model:SX-1250-800
Size:10300mm×2250mm×2300mm

Products description: SX-1250-800 No-girder K-span Arch Sheet Roll Forming Machine

Main Technical Specification of No-girder K-span Arch Sheet Roll Forming Machine ABM
Size: 10300mm×2250mm×2300mm
Total Weight: about 18000KG
Main Motor Power: 16.7KW forming power is 7.5kw ; bending power is 4.0kw; cutting power is 3.0kw; conical power is 2.2kw
Working Speed: Straight sheet: 13m/min
Arch sheet: 13m/min
Sewing: 6m/min
Material of rollers: 45# steel, quenched HRC 58-62
Material of roller shafts: 45# steel
Material of cutting blade: Cr12 steel (Taiwan Airline Technique)
PLC Type: Germany Siemens
Step of rollers: 14 steps
Feeding Width: 1250mm
Effective Width: 800mm
The depth of the groove: 295mm
Thickness of the coil: 0.6-1.5mm
Operating factor of the panel: 64%
Proper span: ≤42m

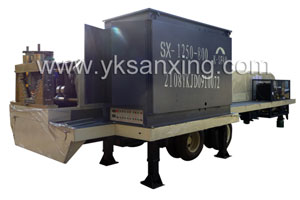

Product Images: SX-1250-800 No-girder K-span Arch Sheet Roll Forming Machine
