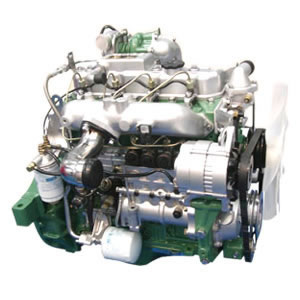

X-series Diesel Engine (Kangwei): 4DX(E3) Diesel Engine
Main Features of 4DX(E3) Diesel Engine:
1. Excellent Design
2. Large displacement, strong power
3. Less vibration, low noise.
4. Low fuel consumption.
5. Reliability and long service life.
6. Compact structure, good looks.
7. Full range, covering a wide range of power.
8. Strong supporting adaptability, advanced vehicle matching technology.
9. High degree of automation, good consistency.
10. Reliable, top quality, easy to maintain.
Application of Diesel Engine:
Our diesel engine is suitable for:6-7 meters coaches, tourism and city buses, 1.5-3 tons of low-speed vehicles, 4-12 tons of trucks, forklifts, agricultural machinery, etc.
Technical Parameters of 4DX(E3) Diesel Engine:

Model	4DX23-110E3	4DX23-120E3	4DX23-130E3	4DX13-100E3			4DX13-110E3	4DX13-120E3
Type	4 cylinders, in line, director injection, turbocharged inter-cooling ,electronic control unit pump
Bore×Stroke (mm×mm)	102×118				100×118
Total displacement(L)	3.857				3.707
Rated power/speed (kW/r/min)	83/2800	90/2800	101/2800		78/2800	83/2800		90/2800
Max torque/speed (N. m/r/min)	324/1800-2000	343/1800-2000	380/1800- 2000		296/1800- 2000	324/1800- 2000		324/1800- 2000
Min. fuel consumption at full load (g/kW. h )	≤205
Smoke (FSN)	≤2.26
Noise dB(A)	≤96.5
Emission (TAS)	EuroⅢ
Net weight (kg)	340
