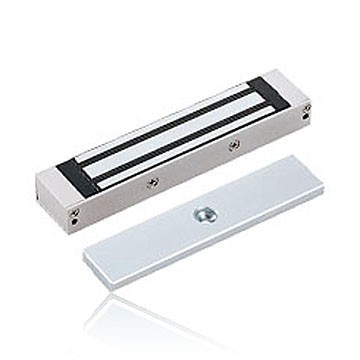

EL-350 LBS Electromagnetic lock series

EL-350 without signal output

EL-350S: with door position detection output(NO/NC)

Features:

Lock Size: 170Lx35Wx21H(mm)
Armature plate: 130Lx33Wx9.3H(mm)
Holding Force: 180kg(350Lbs)
Voltage:DC12V or DC24V (adjustable)
Current Draw: 12V/500mA 24V/250mA
Signal Output: Dry Contact,Max Rating of Contact Current 3A
Suitable for: Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp: ≤+20℃
Operating Temp: -10~+55℃(14-131F)
Suitable Humidity: 0~90%(non-condensing)
Finishes for Shell: Anodized aluminum surface texture processing
Finishes for Magnetic: Zinc
Finishes for Armature: Zinc
Weight: 1.1kg
Standard Packing: 12pcs
