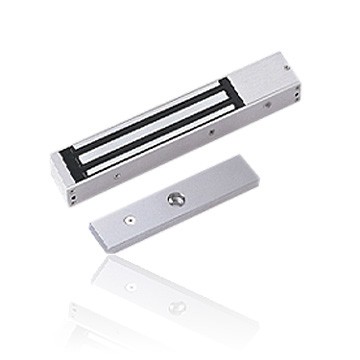

Single Door Electromagnetic lock
EL-800 Without indicator lights
EL-800S:With LED and door position detection output(NO/NC)
Specifications:
Lock Size: 280Lx49Wx29H(mm)
Armature plate: 190Lx39Wx11H(mm)
Holding Force: 380kg(800Lbs)
Voltage:DC12V or DC24V (adjustable)
Current Draw: 12V/500mA 24V/250mA
Signal Output: Dry Contact, ax Rating of Contact Current 3A
LED indicates the door is unlock, Green indicates the door is lock
Suitable for: Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp: ≤+20℃
Operating Temp: -10~+55℃(14-131F)
Suitable Humidity: 0~90%(non-condensing)
Finishes for Shell: Anodized aluminum surface texture processing
Finishes for Magnetic: Zinc
Finishes for Armature: Zinc
Weight: 2.2kg
Standard Packing: 12pcs
