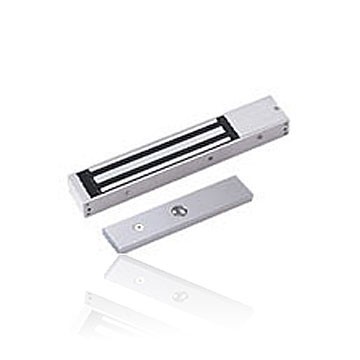

Electric maglocks for single door
Specifications:
Lock Size: 266Lx67Wx39H(mm)
Armature plate: 185Lx57Wx13H(mm)
Holding Force: 600kg(1200Lbs)
Voltage:DC12V or DC24V (adjustable)
Current Draw: 12V/420mA 24V/210mA
Signal Output: Dry Contact,Max Rating of Contact Current 3A
LED indicates the door is unlock, Green indicates the door is lock
Suitable for: Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp: ≤+20℃
Operating Temp: -10~+55℃(14-131F)
Suitable Humidity: 0~90%(non-condensing)
Finishes for Shell: Anodized aluminum surface texture processing
Finishes for Magnetic: Zinc
Finishes for Armature: Zinc
Weight: 4.5kg
Standard Packing: 4pcs
