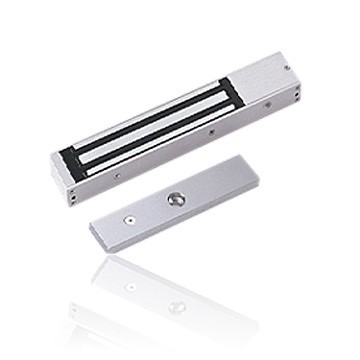

Waterproof magnetic locks
Specifications:
Lock Size: 227.6Lx52.6Wx28.3H(mm)
▶Armature plate: 190Lx45Wx11H(mm)
▶Holding Force: 350kg(800Lbs)
▶Voltage: 12/24VDC+10%
▶Current Draw: 12V/480mA 24V/240mA
▶Optional Bracket: UB 350 ...
▶Suitable for: Wooden door , Glass door ,Metal door , Fireproof door
▶Signal Output: Need to order EL-W800S
▶Surface Temp: ≤+20℃
▶Operating Temp: 10~+55℃(14-131F)
▶Suitable Humidity: 0~90%(non-condensing)
▶Finishes for Shell: Anodized aluminum
▶Finishes for Magnetic: Zinc
▶Finishes for Armature: Zinc
▶Weight: 2.5kg
▶Standard Packing: 8pcs
