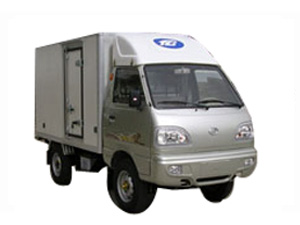

Technical parameters of Van Truck HFJ5020XXYAWGV:
Technology data
Model :HFJ5020XXYAWGV
Dimensions
Overall length(mm) 4005
Overall width(mm) 1415
Overall height(mm) 2420
Cargo box length (mm) 1670
Cargo box width (mm) 1280
Cargo box height(mm) 1650
Front/rear overhang(mm) 795/1010
Wheel base(mm) 2200
Engine
Model DA465Q-1A
Type 4-cyl. In line water cooled gasoline engine
Power(kw) 38.5/5200
Torque(Nm/rpm) 83/3000-3500
Compression ratio 9:1
Cylinder bore/Piston(mm) 65.5×78
Displacement(L) 1.051
Standardment Euro III
Suspension
Front suspension Rigid housing axle leaf spring type 5 pieces
Rear suspension Rigid housing axle leaf spring type 4 pieces
Transmission
Model 5+1 synchromesh transmission
Type Manual Mechanical
Speed ratio I: 3.652
II: 1.948
III: 1.424
IV: 1
V: 0.795
R: 3.466
Steering
Type Roller type
Clutch
Type Single plate, dry type
Front brake System Two section hydraulic drum
Rear brake System Two section hydraulic drum
Tires
Type 5.50-13/4
Safe
Safe belt Three-point belt
Other specifications
Chassis curb weight(kg) 1150
Load capacity(kg) 1000
Max GW(kg) 2410
Mini turning diameter(m) 10
Mini ground clearance(mm) 180
Max climbing ability (%) 30
Max speed 99
Max Braking distance 20
Seat 2+2
Mini rate of Fuel consumption(L/100 km.h ) 5
