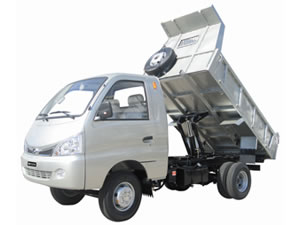

Technical parameters of Dump Truck HFJ3027BV :
Technology data
Model :HFJ3027BV
Dismensions
Overall length(mm) 4530
Overall width(mm) 1750
Overall height(mm) 2050
Cargo box length (mm) 2540
Cargo box width (mm) 1580
Cargo box height(mm) 440
Front/rear overhang(mm) 920/1110
Wheel base(mm) 2500
Engine
Model 4L18
Type 4-cyl. In line water cooled
Power(kw) 30/3200
Torque(Nm/rpm) 123/2200
Compression ratio 18:1
Cylinder bore/Piston(mm) 80/90
Displacement(L) 1.809
Standardment Euro I
Model QC480ZLQ
Type 4-cyl. In line、supercharged intercooled
Power(kw) 38/3000
Torque(Nm/rpm) 131 / 2000
Compression ratio 18:1
Cylinder bore/Piston(mm) 80/90
Displacement(L) 1.809
Standardment Euro II
Suspension
Front suspension Rigid housing axle leaf spring type 3 pieces
Rear suspension Rigid housing axle leaf spring type 5 pieces
Transmission
Model 5+1 synchromesh transmission
Type Manual Mechanical
Speed ratio I: 4.696
II: 2.536
III: 1.576
IV: 1
V: 0.856
R: 4.174
Steering
Type Roller type
Clutch
Type Single plate, dry type
Front brake System Two section hydraulic drum
Rear brake System Two section hydraulic drum
Tires
Type 6.00-14 / 6
Safe
Safe belt Three-point belt
Other specifications
Chassis curb weight(kg) 1560
Load capacity(kg) 1500
Max GW(kg) 3190
Mini turning diameter(m) 11
Mini ground clearance(mm) 180
Max climbing ability (%) 23
Max speed 90
Max Braking distance 22
Seat 2
Mini rate of Fuel consumption(L/100km ) 5.5
Optional equipment
Type Electronic control extinguish equipment
A/C
Dump system
Dump angle(°) ≥48
Dump time(s) ≤20
