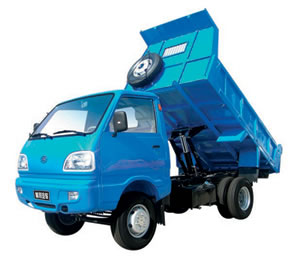

Description of Dump Truck HFJ3023V:
This diesel dump truck has dazzling diamond-like headlamp, peach-wood imitated inner decoration, and elegant shape.

Features of Dump Truck HFJ3023V:
1. More powerful drive
High speed energy-saving DI engine with large torque, stable performance, and property; 5+1 synchronized gear box, diaphragm clutch of even friction; large torque and good climbing ability.
2. More safe and reliable
Stable and reliable brake for the use of vacuum assisted brake controlling system, double-pipe hydraulic brake technology; double-arm and for connecting rods create powerful lifting; the spring of the slope steel plate conducts bidirectional shake absorption to realize the smooth shifting and comfortable driving.
3. Fuel saving, more economical
The precise assembly, proper wheel base, easy to start, low fuel consumption, Compared with the other similar products, it can save 1.5-2L fuel per 100k.
4. Larger loading capacity
The complete rivet frame is high in strength and excellent in rigidity. The auxiliary frame optimized the function of the rear axle contribute to exceptional loading capacity.
5. More flexible Easy to steer, sufficient power, quick speed acceleration

Application of Dump Truck HFJ3023V:
Diesel dump truck can be used as a dump truck or as a common transportation light truck, widely applied in projects of construction, highway maintenance, rural irrigation construction, etc.

Technical Parameters of Dump Truck HFJ3023V:
Technology data
Model :HFJ3023V
Dimensions
Overall length(mm)     4200
Overall width(mm)     1710
Overall height(mm)     1950
Cargo box length (mm)     2540
Cargo box width (mm)     1580
Cargo box height(mm)     400
Front/rear overhang(mm)     790/1110
Wheel base(mm)     2300
Engine
Model     4L18
Type     4-cyl. In line water cooled
Power(kw)     30/3200
Torque(Nm/rpm)     123/2200
Compression ratio     18:1
Cylinder bore/Piston(mm)     80/90
Displacement(L)     1.809
Standardment     Euro I
Model     QC480ZLQ
Type     4-cyl. In line、supercharged intercooled
Power(kw)     38/3000
Torque(Nm/rpm)     131 / 2000
Compression ratio     18:1
Cylinder bore/Piston(mm)     80/90
Displacement(L)     1.809
Standardment     Euro II
Suspension
Front suspension     Rigid housing axle leaf spring type     3 pieces
Rear suspension     Rigid housing axle leaf spring type     5 pieces
Transmission
Model     5+1 synchromesh transmission
Type     Manual Mechanical
Speed ratio     I:     4.605
II:     2.693
III:     1.645
IV:     1
V:     0.839
R:     3.816
Steering
Type     Roller type
Clutch
Type     Single plate, dry type
Front brake System     Two section hydraulic drum
Rear brake System     Two section hydraulic drum
Tires
Type     6.00-13/6
Safe
Safe belt     Three-point belt
Other specifications
Chassis curb weight(kg)     1590
Load capacity(kg)     1500
Max GW(kg)     3120
Mini turning diameter(m)     10
Mini ground clearance(mm)     180
Max climbing ability (%)     30
Max speed     85
Max Braking distance     22
Seat     2
Mini rate of Fuel consumption(L/100km )     6.5
Dump system
Dump angle(°)     ≥48
Dump time(s)     ≤20
