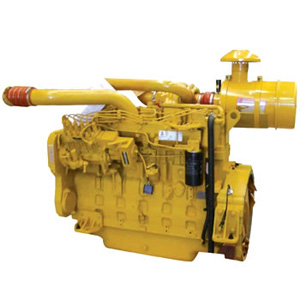

| Shanghai Diesel Engine Co.,LTD. Import & Export Company | Bore/Stroke:114/144 mm | Cylinder No.:6 | |||
| Compression Ratio:18:1 | Displacement:8.9 L | ||||
| Model | Unit | SC9D245D | SC9D280D | ||
| Rated Power (12h) | kW | 163 | 185 | ||
| Standby Power(1h) | kW | 180 | 204 | ||
| Rated Speed | r/min | 1500 | 1500 | ||
| Fuel Consumption @ Rated Condition | g/kW.h | ≤205 | |||
| Type | Turbocharger, Air-air intercooling | ||||
| Noise | dB(A) | ≤114 | |||
| Oil Capability | L | 24 | |||
| Cooling Water Capability(Only in Engine) | L | 8.2 | |||
| Exhaust Smoke(Bosch) | Rb | ≤1.5 | |||
| Exhaust Temperature(After Turbocharger) | ℃ | ≤550 | |||
| Governor type | Electronical | ||||
| Stable State Rate | % | 0~5% | |||
| Wave Rate | % | ≤0.5 | |||
| Speed Settling Time | S | ≤5 | |||
| Starting | Electronical DC24V | ||||
| Oil Consumption | g/kW.h | ≤0.6 | |||
| Min. Idle speed | r/min | ≤700 | |||
| Crankshaft Rotation | Anticlockwise | ||||
| Overall Dimension (plastic/wooden case) | mm | 1850*970*1500/ 1460*1092*1409 | |||
| Net weight | kg | 1000 | |||
| Dissipation Square | m² | 50.72 | |||
| Power Station | 144kW/50HZ | 160/164kW/50HZ | |||
| Flywheel/Flywheel Case | Flywheel SAE11 1/2#;Flywheel Casing SAE2#;Starting Gear Teeth:125 | ||||
| Rated Speed at 1800r/min | Power(12h) | kW | 195.6 | 222 | |
| Power Station | 175kW /60HZ | 196kW/60HZ | |||
