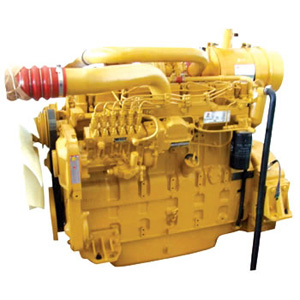

| Shanghai Diesel Engine Co ., LTD. Import & Export Company | Cylinder No.: 6 | Displacement: 8.27 L | |||||
| Bore/Stroke:114/135 mm | Compression Ratio:18:1 | ||||||
| Model | Unit | SC8D160D | SC8D200D | SC8D220D | |||
| Rated Power (12h) | kW | 105 | 132 | 146 | |||
| Standby Power(1h) | kW | 116 | 145 | 160 | |||
| Rated Speed | r/min | 1500 | 1500 | 1500 | |||
| Fuel Consumption @ Rated Condition | g/kW . h | ≤215 | ≤205 | ||||
| Type | Turbocharger | Turbocharger, Air-air intercooling | |||||
| Noise | dB(A) | ≤114 | |||||
| Oil Capability | L | 24 | |||||
| Cooling Water Capability(Only in Engine) | L | 8.2 | |||||
| Exhaust Smoke(Bosch) | Rb | ≤2.0 | ≤1.5 | ||||
| Exhaust Temperature(After Turbocharger) | ℃ | ≤600 | ≤550 | ||||
| Intake Flow | L/S | 190 | 208 | 252 | |||
| Exhaust Flow | L/S | 522 | 572 | 693 | |||
| Governor type | Electronic | ||||||
| Stable State Rate | % | 0~5% | |||||
| Wave Rate | % | ≤0.5 | |||||
| Speed Settling Time | S | ≤5 | |||||
| Starting | Electronic DC24V | ||||||
| Oil Consumption | g/kW. h | ≤0.6 | |||||
| Min. Idle speed | r/min | ≤750 | |||||
| Air Draft | m3/s | 5.8 | 7.7 | ||||
| Fan Heat Dissipating Capacity | kW | 78 | 89 | 98 | |||
| Crankshaft Rotation | Anticlockwise | ||||||
| Overall Dimension (plastic/wooden case) | mm | 1850*970*1500/1460*1092*1409 | |||||
| Net weight | kg | 1000 | |||||
| Dissipation Square | m² | 46.1 | 46.1 | 48.01 | |||
| Power Station | 90kW/50HZ | 112kW/50HZ | 128kW/50HZ | ||||
| Flywheel/Flywheel Case | Flywheel SAE11 1/2#;Flywheel Casing SAE2#;Starting Gear Teeth:125 | ||||||
| Rated Speed at 1800r/min | Power(12h) | kW | 126 | 158.4 | 175.2 | ||
| Power Station | 105kW /60HZ | 134kW /60HZ | 152kW /60HZ | ||||
