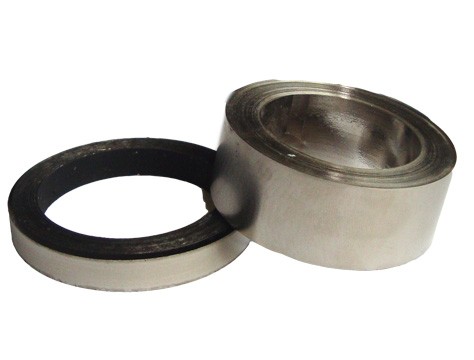

Iron-based amorphous ribbon:

Production speciation:

Thickness 0.02mm to 0.03mm,width 2.5mm to 170 mm. Customized size is also available upon requests.

Physical properties:

Saturate Induction	1.56T	Hardness(Hv)	960kg/mm2
Curie Temperature	410 degress C	Density	7.18g/cm3
Crystallization Temperature	535 degress C	Resistivity	130μΩ-cm
Saturate Magnetostriction	27×10-6

Magnetic properties:

Product type	Transverse field annealed	No field annealed	Longitudinal field annealed
Maximum permeability	>2×104	>20×104	>25×104
Saturate induction	1.5T	1.5T	1.5T
Remanence	<0.5T	01.0T	1.2T
Coercivity	<4 A/m	<2.4 A/m	<4 A/m
Core loss (50kHz, 1.4T)	<0.2 W/kg	<0.13 W/kg	<0.3 W/kg
Core loss (400kHz, 1.2T)	<1.8 W/kg	<1.25 W/kg	<2 W/kg
Core loss (8kHz, 1.0T)	<80 W/kg	<60 W/kg	<100 W/KG

Curves:
