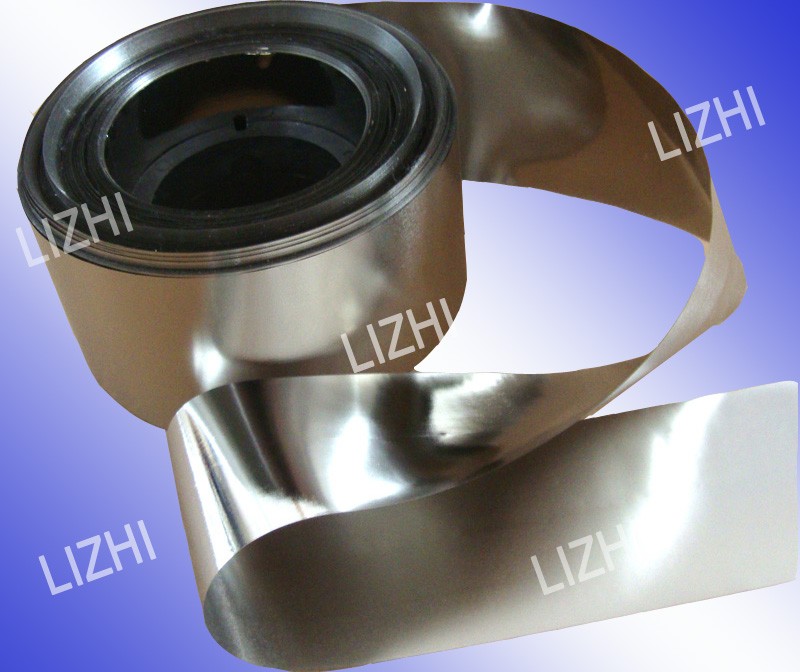

Fe-based amorphous ribbon:
Production speciation:
Thickness
Physical properties:
| Saturate Induction | 1.56T | Hardness(Hv) | 960kg/mm2 |
| Curie Temperature | 410 degress C | Density | 7.18g/cm3 |
| Crystallization Temperature | 535 degress C | Resistivity | 130μΩ-cm |
| Saturate Magnetostriction | 27×10-6 |
Magnetic properties:
|
Product type |
Transverse field annealed |
No field annealed |
Longitudinal field annealed |
| Maximum permeability | >2×104 | >20×104 | >25×104 |
| Saturate induction | 1.5T | 1.5T | 1.5T |
| Remanence | <0.5T | 01.0T | 1.2T |
| Coercivity | <4 A/m | <2.4 A/m | <4 A/m |
| Core loss (50kHz, 1.4T) | <0.2 W/kg | <0.13 W/kg | <0.3 W/kg |
| Core loss (400kHz, 1.2T) | <1.8 W/kg | <1.25 W/kg | <2 W/kg |
| Core loss (8kHz, 1.0T) | <80 W/kg | <60 W/kg | <100 W/KG |
Curves:
