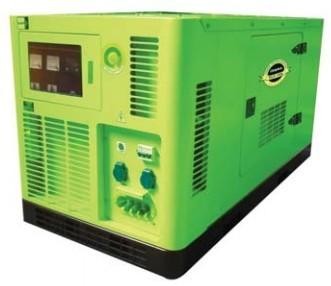

10KW Silent Diesel Generator Set

Brand Name TICO POWER  or OEM

1) Place of Origin Fujian, China (Mainland)

2) Price: FOB2008-2500USD/Set

3) Port: Fuzhou

4) Delivery Time: 20 Days

5) Payment Terms: L/C,T/T,by negotiation

6) Supply Ability: 200 Set/Sets per Month

7) Minimum Order Quantity: 1 Set/SetsTrial Order

8) Color Customer colors available
9) Contract Manufacturing: OEM Service Offered

10) Certification CE, EPA, ISO

===================================

Features

1) 12Months Quality Warrarry
2) Low fuel consumption
3) High quality promise

4) Color Customer colors available
5) Copper wire

===================================

Specification

Model: TC-Q10S

Frequency (HZ): 50 l 60Hz

Nominal Power Output (KVA/KW): 10/8 l  12.5/10

Voltage (V): 220V/ 380V; 230V/ 400V

Phase number: Three phases

Power factor: 0.8

Generator

Model: TFWS164B

Type: Alternator

Power output: 8.8 l 11KW

Excitation system: Brushless excitation with AVR

Protection: IP22

Insulation class: H

Connection Type: SEA

Engine

Engine Model: QC385D

Number of cylinder: 3

Bore*Stroke: 80x90

Displacement: 1.357L

Specific fuel consumption(g/kw.h): <265

Rated Speed(r/min): 1500

Nominal output (KW): 11 l 13.2

Starting System: Electric

Cooling method: Closed circle water-cooled

Starting battery: 12V/60AH

Average noise level db (A) 7m: 75db(A)

Cont working time (hrs): 12

Overall dimension (mm): 1600x750x800mm

Packing dimension: (mm): 1680x765x850

Net weight: 590kg

Gross weight: 640kg
