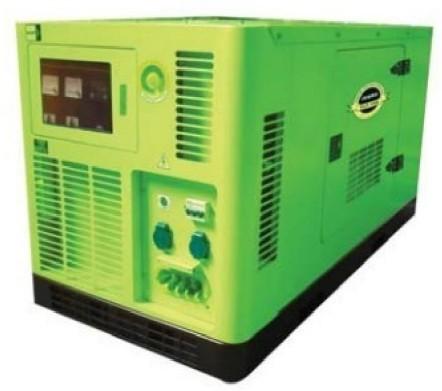

10KW Diesel Generator Set

Brand Name TICO POWER  or OEM

1) Place of Origin Fujian, China (Mainland)

2) Price: FOB2000-2600USD/Set

3) Port: Fuzhou

4) Delivery Time: 20 Days

5) Payment Terms: L/C,T/T,by negotiation

6) Supply Ability: 500 Set/Sets per Month

7) Minimum Order Quantity: 1 Set/SetsTrial Order

8) Color Customer colors available
9) Contract Manufacturing: OEM Service Offered

10) Certification CE, EPA, ISO

===================================

Features

1) 24Months Quality Warrarry
2) Low fuel consumption
3) High quality promise

4) Color Customer colors available
5) Copper wire

===================================

Specification

Model  TC-Q13S

Frequency   50Hz

Nominal Power Output  10KW

Voltage  220V / 380V; 230V / 400V
Phase Number  Three phases
Power Factor  0.8
Generator
Model  TFWS164C

Type  Alternator
Power Output  13.5KW

Excitation System  Brushless Excitation with AVR
Protection Degree  IP22
Insulation Class  H
Connection Type  SAE
Engine
Model  QC480D

Number of Cylinders  4 4
Bore*Stroke  80X90

Displacement  1.809L

Specific Fuel Consumption  <249

Rated Speed  1500r/min

Nominal Output  14KW

Starting System  Electric
Cooling Method  Closed Circle Water-Cooled
Starting Battery  12V/60AH
Average Noise Level (7m)  75db
Cont. Working Time  12hrs
Packing Dimension (mm)  1740X765X850

Gross Weight: 666kg
