Brand Name TICO POWER or OEM
1) Place of Origin Fujian, China (Mainland)
2) Price: FOB2300-2800USD/Set
3) Port: Fuzhou
4) Delivery Time: 20 Days
5) Payment Terms: L/C,T/T,by negotiation
6) Supply Ability: 200 Set/Sets per Month
7) Minimum Order Quantity: 1 Set/SetsTrial Order
8) Color Customer colors available
9) Contract Manufacturing: OEM Service Offered
10) Certification CE, EPA, ISO
===================================
Features
1) 12Months Quality Warrarry
2) Low fuel consumption
3) High quality promise
4) Color Customer colors available
5) Copper wire
===================================
Specification

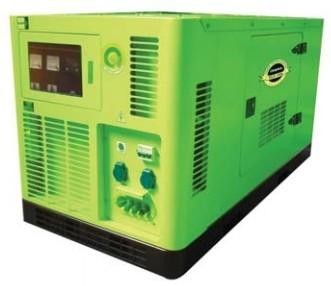

Model: TC-Q15S
Frequency (HZ): 50 l 60Hz
Nominal Power Output (KVA/KW): 12/16 l 19/16
Voltage (V): 220V/ 380V; 230V/ 400V
Phase number: Three phases
Power factor: 0.8
Generator
Model: TFWS164D
Type: Alternator
Power output: 12.8 l 16KW
Excitation system: Brushless excitation with AVR
Protection: IP22
Insulation class: H
Connection Type: SEA
Engine
Engine Model: QC485D
Number of cylinder: 4
Bore*Stroke: 90x105
Displacement: 2.156L
Specific fuel consumption(g/kw.h): <245
Rated Speed(r/min): 1500 l 1800
Nominal output (KW): 17 l 20
Starting System: Electric
Cooling method: Closed circle water-cooled
Starting battery: 12V/60AH
Average noise level db (A) 7m: 75db(A)
Cont working time (hrs): 12
Overall dimension (mm): 1800x750x820
Packing dimension: (mm): 1840x765x900
Net weight: 630kg
Gross weight: 680kg
