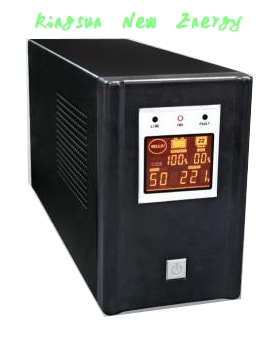

Off-Grid Solar Inverter (Power Frequency)
Introduction
DH series solar inverters are mainly applied in solar off-grid power supply system. It is a integrated device combining solar charge & discharge controller and inverter, of which the output waveforms are modified sine wave and pure sine wave; DC voltage inputs are 12V, 24V, 36V, 48V, 100V, 200V, 400V etc; The input voltage can be AC voltage & DC voltage to charge, the installation way is desktop. Special custom-made products are available.
Product Features
1. Integrate charge & discharge controller and inverter, effective charge of storage battery.
2.
3. General frequency transformer output way, strong power output ability, strong resistance to impact.
4. Output Isolation, good security.
5. Mature protection performance, overcharge protection, over discharge protection, overload protection, short-circuit protection, thermal protection etc.
6. Maintenance-free and the life span reach 20 years
Technical Parameters
|
Model Item |
DH- 800S24 |
DH- 1KS24 |
DH- 1KS48 |
DH- 2KS24 |
DH- 2KS48 |
DH- 2K5S48 |
DH- 2K5S96 |
|||
|
Rated DC Voltage Input |
24V |
24V |
48V |
24V |
48V |
48V |
96V |
|||
|
DC |
18~34V |
18~34V |
48~70V (60~75V) |
18~34V |
48~70V |
48~70V |
96~150V |
|||
|
Charging Current of Storage Battery |
18~25A |
20~30A |
15~25A |
60~80A |
30~40A |
40~50A |
20~30A |
|||
|
Charging Voltage of Storage Battery |
26V/cell (can be changed) |
|||||||||
|
Rated Voltage of Connecting Solar Modules |
24V |
24V |
48V (60V) |
24V |
48V |
48V |
96V |
|||
|
Connect Solar Panel Power (WP) |
400~600 |
400~800 |
0.5~0.8K |
1~1.6K |
1~1.6K |
1.5~2K |
1.5~2K |
|||
|
Open Circuit Voltage of Solar Modules |
40V |
40V |
80V (100V) |
40V |
80V |
80V |
350V |
|||
|
Continuous Working Power Output |
800VA |
1000VA |
1000VA |
2000VA |
2000VA |
2500VA |
2500VA |
|||
|
30 Minutes Power Output |
1000VA |
1300VA |
1200VA |
2400VA |
2400VA |
3200VA |
3200VA |
|||
|
5 seconds Power Output |
2400VA |
3000VA |
3000VA |
6000VA |
6000VA |
7500VA |
7500VA |
|||
|
Output Voltage |
220VAC |
|||||||||
|
Output Waveform |
Pure Sine Wave |
|||||||||
|
Distortion Degree |
THD<5% |
|||||||||
|
Inverter output frequency value |
50HZ |
|||||||||
|
Conversion Efficiency |
85% |
85% |
85% |
85% |
85% |
90% |
90% |
|||
|
Power Factor |
0.99 |
|||||||||
|
Protection Performance |
Thermal Protection, Over Voltage Protection, Under Voltage Protection, Overcharge, Over discharge, Overload, Thunder-proof etc |
|||||||||
|
Protection Grade |
IP25 |
|||||||||
|
Environmental Temperature |
-10~40C |
|||||||||
|
Environmental Humidity |
0~90% |
|||||||||
|
Cooling way |
Air-cooled |
|||||||||
|
Display |
LED/LCD |
|||||||||
|
Installation |
Desktop |
|||||||||
|
Connection Way |
Solar panels input, Storage battery, AC output (option: public electricity power and solar power can be interchangeable) |
|||||||||
|
Dimension (H*W*L) |
222*145*390mm |
330*190*445mm |
||||||||
|
Weight |
13kg |
16kg |
16kg |
22kg |
22kg |
25kg |
||||
