1000W China Solar Inverter (Sine Wave)

Products Visitors:458

Product Name:1000W China Solar Inverter (Sine Wave)
Model:NS1000W

Products description: 1000W China Solar Inverter (Sine Wave)

Features

1. single-chip microcomputer control, pure sine wave output, can drive all kinds of home appliances and industrial equipments.

2. Slow start-up function of output, even with load boot also not damage the inverter.

3. High conversion efficiency, with fluorescent lamp load cases, can reach 85% of the conversion efficiency, save the solar energy, wind energy input.

4. Protection function is well-found, overload protection, short circuit protection, over high-low voltage input protection.

5. The most advanced technology, the best cost performance.

Technical Parameters

Model	NS300W	NS500W	NS700W	NS1000W	NS1500W	NS2000W
Power	300W	500W	700W	1000W	1500W	2000W
Input Voltage	175V~265Vac or 90V~280Vac
Input Frequency	50HZ +/- 5HZ
Output Voltage	220VAC+/-3%
Output Frequency	50HZ +/- 2%
DC Voltage	12Vdc		24Vdc		48Vdc
Output Waveform	Sine Wave
Distortion	Less than or equal to 3%
Overload Protection	Overload 100~120%, automatic lock 25 seconds later; Overload 120-200%, automatic lock 1 second later; Overload 200%, automatic lock 0.1 second later;
Dimension (mm)	372122203		405145220		460194305
Weight (kg)	6.9	7.6	10.0	10.5	18.0	23.4

Model	NS2500W	NS3000W	NS3500W	NS4000W	NS6000W	NS10000W
Power	2500W	3000W	3500W	4000W	6000W	10KW
Input Voltage	175 ~265Vac
Input Frequency	50HZ +/- 5HZ
Output Voltage	220VAC +/- 3%
Output Frequency	50HZ +/- 2%
DC Voltage	48Vdc				96Vdc	240Vdc
Output Waveform	Sine Wave
Distortion	Less than or equal to 3%
Overload Protection	Overload 100~120%, automatic lock 25 seconds later; Overload 120-200%, automatic lock 1 second later; Overload 200%, automatic lock 0.1 second later;
Dimension (mm)	460194305				550255700
Weight (kg)	28.0	33.4	33.4	39.8	75.0	86.0

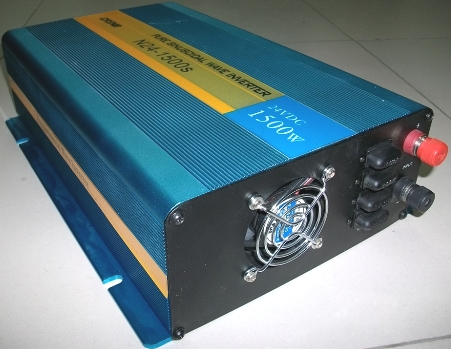

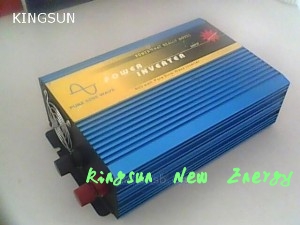

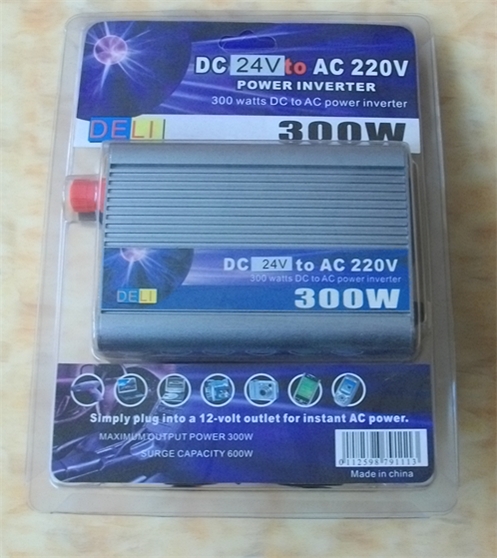

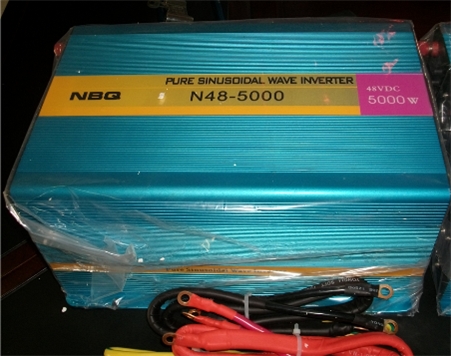

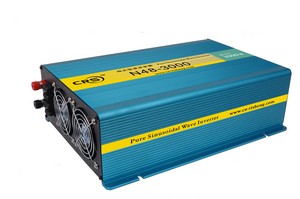

Product Images: 1000W China Solar Inverter (Sine Wave)
