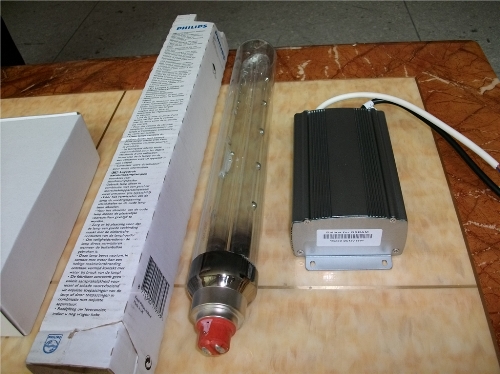

Electronic Ballast for Low-Pressure Sodium Lamp (LPS)

Basic Parameters

Brand: Kingsun New Energy

Application: Special for Low-Pressure Sodium Lamp

Input Power: 18W~135W

The Maximum Pulse: 3000V~5000V
Highest Temperature on the Shell: PC+80C
Max. distance to light: 15M
Packing Units: 10 pieces/carton

Features

1. SCM CPU digital technique insures the intellectual protection of electronic ballasts--- keeping the safety of ballasts and the system, when the voltage output terminal is abnormal.

In the process of warm-up, triggering, and- ignition, the CPU can reach the best state to protect the electrode of lamp /tubes. This is measured by the micro controlling span of system and the height of impulse from the trigger voltage. Thus it doubles the longevity of the electrode for lamp tubes greatly.

2. High frequency output solution (< or =30HZ) to eliminate the frequent flashing phenomena caused by low frequency output, and to increase the efficiency of tubes by 10%.

Owning to the high frequency output solution to increase ballast efficiency, the consumption caused by ballasts itself is greatly reduced by 4% or so. While in low frequency output the ballast consumption is about 10%; if it is used in the same solar energy system , the efficiency increased by using the high frequency electronic ballasts can reach about 6%, comparing with that of low frequency ones. Thus, it considerably saves the area betaken from the solar energy battery & reduces the cost.

3. Optimized designing solution for dynamic operation, the best electronic fittings, the high quality aluminum to dissipate heat, the integrated sealing to proof wet and moisture, all of which insure the traits of high quality, long life and- free of maintenance.

4. It is designed especially for low pressure sodium lamp.
