Products Name : YHZS Series Mobile Concrete Mixing Plant

Model: YHZS

Products Description:

YHZS20, YHZS35, YHZS50, YHZS720 Mobile Concrete Mixing Plant YHZS series of mobile concrete mixing plant is a new type of trailerable mobile concrete mixing plant and is milestones of concrete batching plant, which is researched, designed and produced independently by our company using European advanced technology for reference. It is your best choice for mobile operations in various constructions such as highway, railway, architecture, municipal engineering, bridge, port and hydropower station

Its structure is unique with novelty to combine various functions of collecting, weighing, mixing and conveying into a trailer unit for excellent mobility. We have absorbed the worldwide advanced technologies on its design to ensure accurate and reliable weighing, even and effective mixing, and fast conveying. It is highly reliable with easy operation and transportation. It is capable of mixing dry hardness, half dry hardness, plastic concrete. Besides, it is simple in operation, mobile in site-transfer and excellent in reliability. May be moved anywhere on hauling, may be ready for using on settling down.

Features of Mobile Asphalt Batching Plant：

1. Stability and Durability: adapt and apply the most advanced technologies around the world;

2. Reliability: 30 years of experiences in manufacturing concrete mixing plants;

3. Stationary modular structure, fast and easy installation;

4. Horizontal Twin-Shaft Compulsory Mixer, excellent mixing performance with high efficiency and high productivity;

5. Excellent environmental protection, dust collection system and anti-noise design.

Excellent Mixing Performance;

1. Horizontal twin-shaft compulsory mixer has the strong mixing ability with uniform mixing and high production output. The admixtures are widely mixed by the shafts, and reach the best proportional ratio of uniform;

2. The mixing shafts adapt anti-binding technology to prevent the cement from binding on the shafts;

3. Mixing paddles, arms and blades are made of special high chromium and high manganese alloy materials. The wear resistance of the mixing paddles saves time and cost to replace, and at the same time, improves the machines durability and reliability

4. The greasing system, which is controlled by central control system, lubricates the greasing points at the fixed position, fixed time and fixed quantity.

5. Decelerating system uses high-speed, synchronized, and closed planetary decelerators. 6. The opening of discharge gate can be adjusted by hydraulic system as per specific requirements.

Control System

1. The control system of double computers with double controls consists of two industrial computers, one is production control computer and the other is production management computer. The control system has the following functions:

    A. Automatic and manual control, easy operation;

    B. Dynamic display of the production process, and monitoring in real time;

    C. Saving of the data of production perimeters in the computer, printing of the daily, monthly, and yearly statistic reports of production;

    D. Weighing accuracy: automatic re-feeding if there is shortage of weight, warning if there is overweight;

    E. The operators, with the assistance of safety monitoring system, will know and monitor the running situations of the mixing plant in the control room;

2. The management computer is a backup computer for the whole electric control system. When the control computer is out of order, the management computer can be changed into the control computer to control production.

3. Long-distance trouble shooting by internet and teleservices, which greatly improves the users ability to trouble shoot the system.

4. The control room, which is made of colorful shaped steel plates, is capacious, anti-noise and heat insulated. It guarantees the working temperature of the electrical components, also improves the working environment.

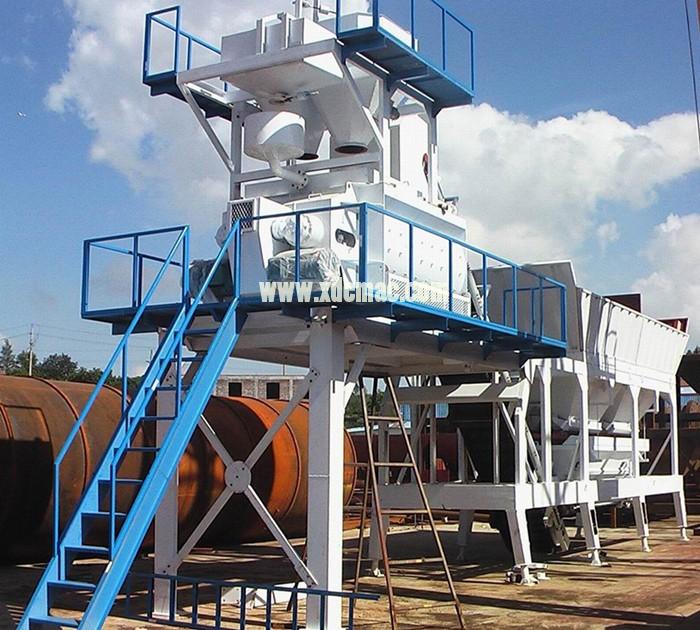

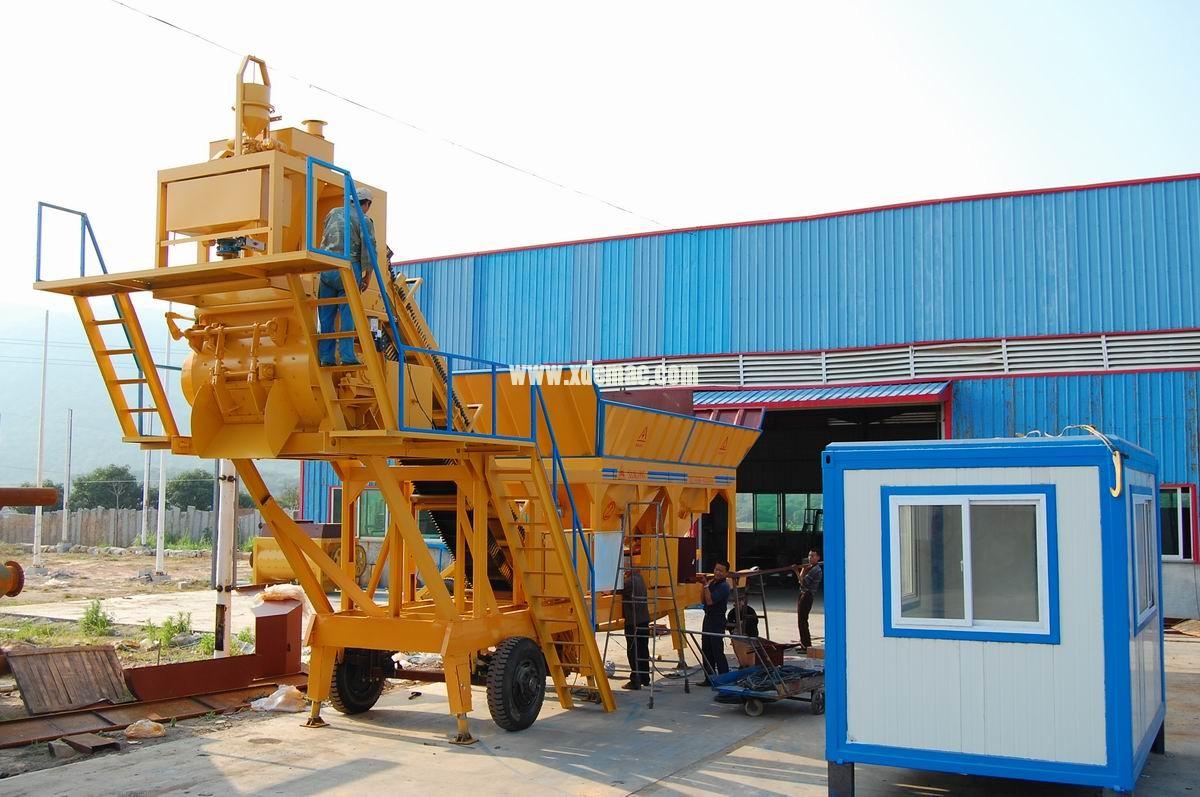

Main Structure of YHZS Mobile Concrete Mixing Plant ( YHZS Series )

YHZS series mobile concrete batching plant

                Main Technical paraments
