Products Name : SLHB Series Double Drum Mobile Asphalt Mixing Plant

Model: SLHB

Products Description:

SLHB-8, SLHB-10, SLHB-15, SLHB-20, SLHB-30 Double Drum Asphalt Mixing Plant SLHB-8 is the asphalt mixing plant with smallest capacity, which mobile double drums asphalt mixing plant, consists of aggregate elevator, burner, dryer, asphalt weighing conveyor, filler weighing conveyor. finished-product hopper(optional).cyclone dust collecting system, trailing chassis, PLC programmable electrical control cabinet, automatic weighing hopper(optional),coal grinding and powder feeding device etc. small area ,can be dragged and short installation period, wide scope of fuel. Easy operation; easy maintenance, reliable and compactable good quality of finished product high technology, automatic. high degree of standardization, apply to the asphalt road’s construction and maintenance.

The plant combines the intermittent dryer and drum mixer as the whole structure, and the mixer can be dragged, and it occupies small area and is easy to transfer from site to site and install. The mixer is reliable, compactable and automatic with wide scope for fuel application, easy operation, convenient maintenance, good quality of finished products, high technology and high degree of standardization, applying to the high graded asphalt road's construction and maintenance.

Features of Mobile Asphalt Batching Plant：

1. The machine has module structure which combines intermittent drying roller and drum mixer.

2. The high quality and stability of the asphalt produced by our machine can meet the requirements of the high-level black pavements in pavement building, reconstruction and maintainance.

3. PLC control, touch screen with free auto/manual transfer are available for this kind of concrete mixing equipment.

4. Movable chassis structure allows a fast as well as easy transport and installation.

5. Coal and oil burner are available upon customer’s request. Main Applications of Mobile Asphalt Batching Plant , this kind of asphalt mixing equipment is widely used for producing asphalts,known as a type of industrial materials that do play an essential role in construction and maintenance work of asphalt roads.

6.  The electric control components adopt ABB Company’s products.

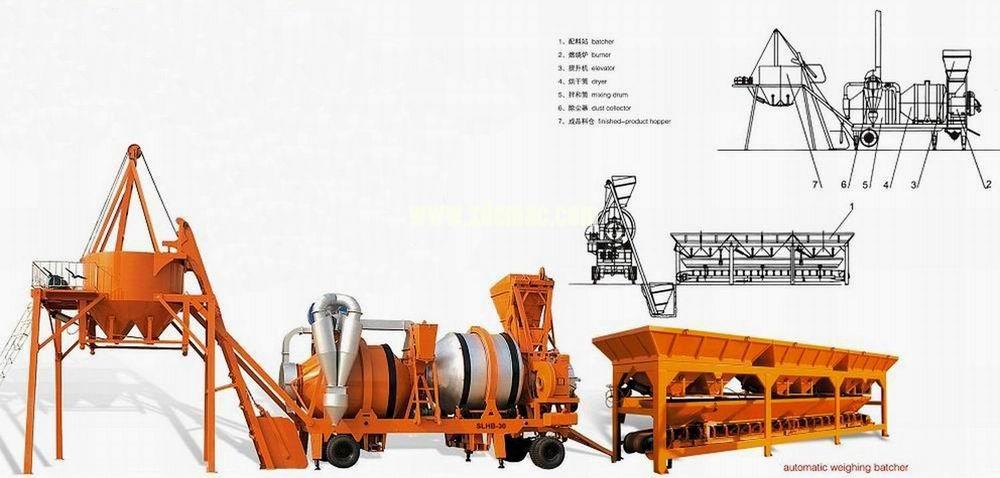

Main Structure of Mobile Asphalt Plant ( SLHB Series )

1.Cold Aggregate Supplying System

Cold aggregate is weighed and elevated into the drying drum. We have Three-bins and five-bins aggregate batcher.

2.The Burning System.

Burner is available for both coal and oil. Customers can choose either freely. （If you choose the coal burner, a coal breaker is needed）

3.The Drying Drum And Mixing Drum

The drying drum and the mixing drum are integrated design which reduces customers’ cost.

4. Dust Collecting System

The Cyclone dust filter is the basic configuration, and the bag filter and water filter is for optional. The dust collecting system can help you to reduce the pollution.

5. Finished storage bin

Convenient for finished product transferring.

6. Control system

PLC control and touch screen make the switch between auto operation and manual operation freely.

SLHB series double drum mobile asphalt mixing plant

                Main Technical paraments
