Products Name : YWBS series Mobile Soil Mixing Plant

Model: YWBS

Products Description:

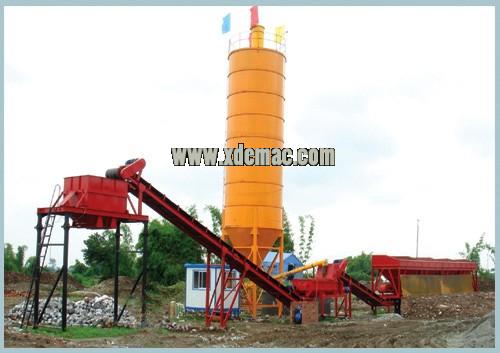

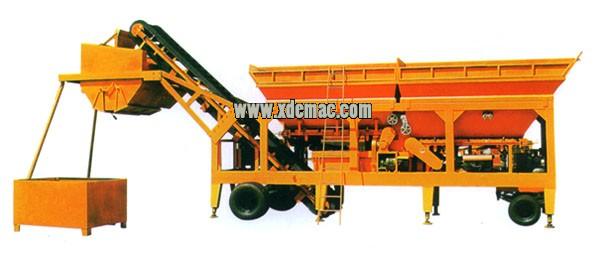

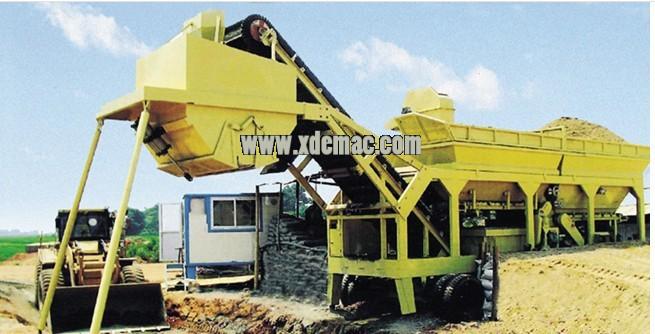

YWBS120, YWBS200, YWBS300 YWBS mobile soil mixing plant, is mainly used in the construction of base layer of high-way, urban road, airport, seaport and producing the gray soil layer and mixing the compactable concrete. A trailing unit is designed to fulfill a variety of tasks that include collecting, mixing, hoisting and storage with compact structure, precise weighing and good mixing. The perfect mobility makes it to be ideal plant for the construction in long and densely-located sites.

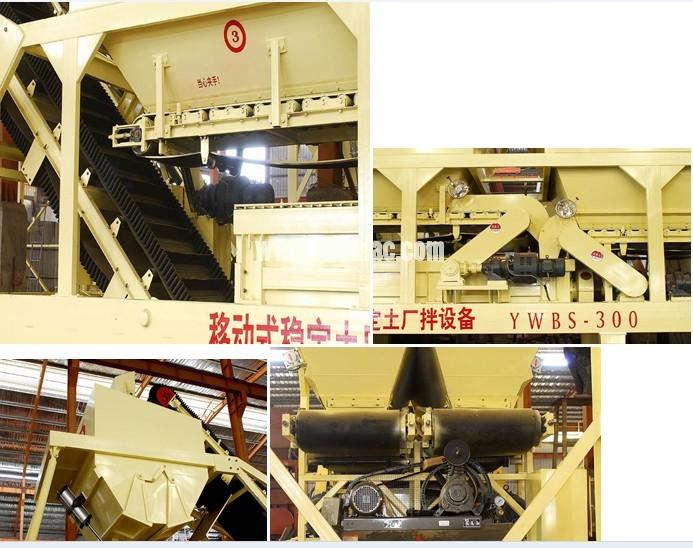

The plant is composed of five major parts: grain supplying system, stabilizer (cement or lime powder) supplying system, water supplying system, mixing system and mixed materials storing system, electric control system. It has the following features: compact structure, accurate weighing, uniform mixing and excellent.May be moved anywhere on hauling, may be ready for using on settling down.

It is flexible and practical for highway and railway construction projects with multiple sites and long distance, such as large square engineering,airport engineering,municipal engineering,mine road.

Features of Mobile Soil Mixing Plant：

Mobile Stability Soil Mixing Plant:
1. For the construction in long & densely-located sites
2. Durable
3. Perfect after-service
Mobile stability soil mixing plant is for the construction in long and densely-located sites. It is with easy operating scientific structure. A trailing unit combines all functions of modular stability soil mixing facilities.

4.It is composed of the systems of material supply,weighing,mixing and electric control;

5.Its discharge height is 2.8m,and it can mix of concrete;

6.With the loader to feed material,it can store four types of aggregates at the same time and also with two cement silos and their respective screw conveyor;

7.With electronic scales to measure and the mixing host is twin-horizontal-axis type;

8.Electrical system is equipped with IPC,printer and so on to realize the centralized control and overall management;

9.With the functions of real-time display,information storage and automatically equalizing the fall during the production process;

10.It can be controlled by computer and manually,and they can be easily converted through the switch;

11.The modular design is convenient for the containerized transport;

12.With the optimized design of the concrete batch plant,it can be overall transferred by the towing vehicle.

WBS series stabilized soil mixing plant

                Main Technical paraments
