Products Name : WBS Series Stabilized Soil Mixing Plant

Model: WBS

Products Description:

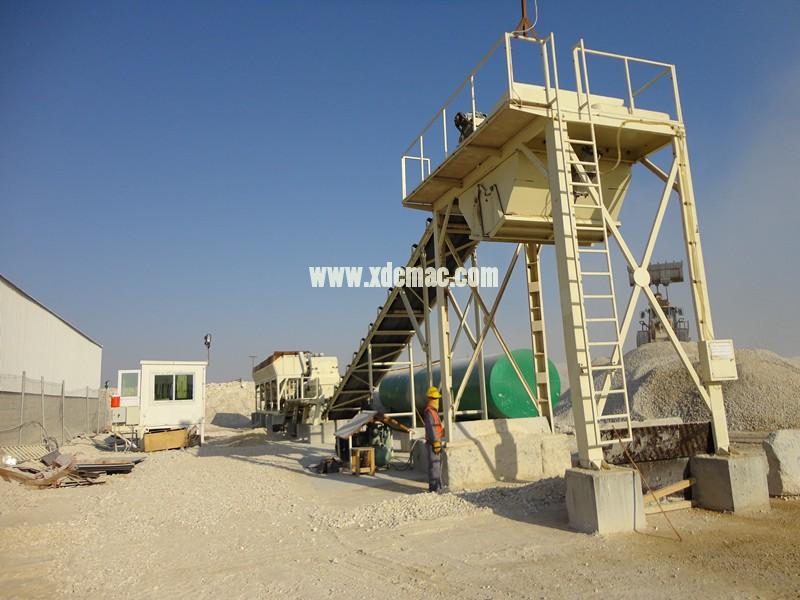

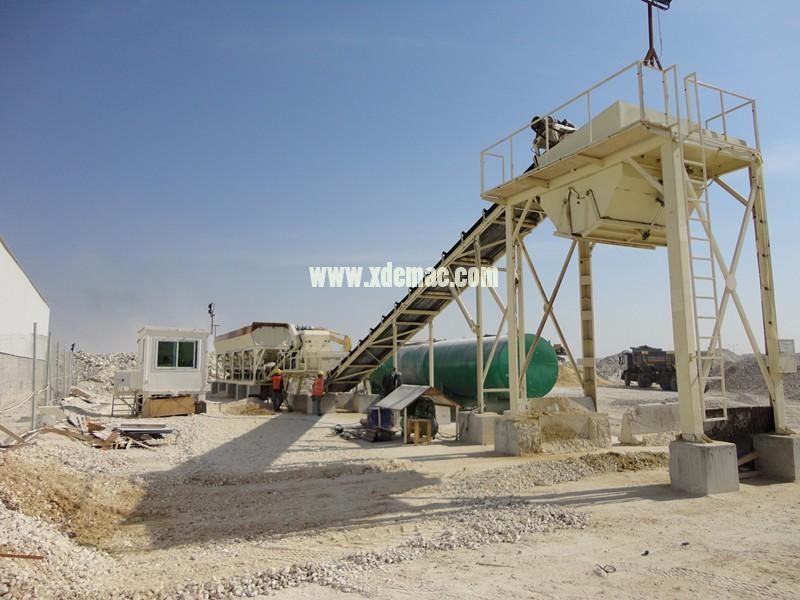

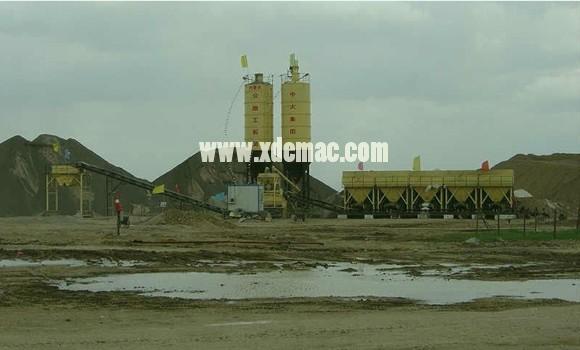

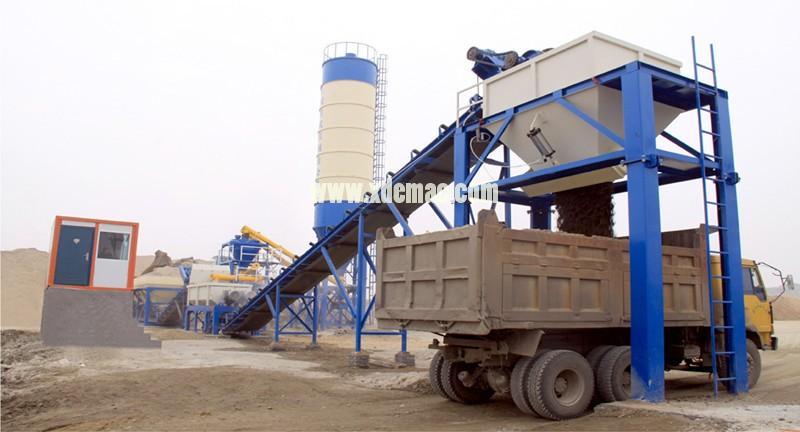

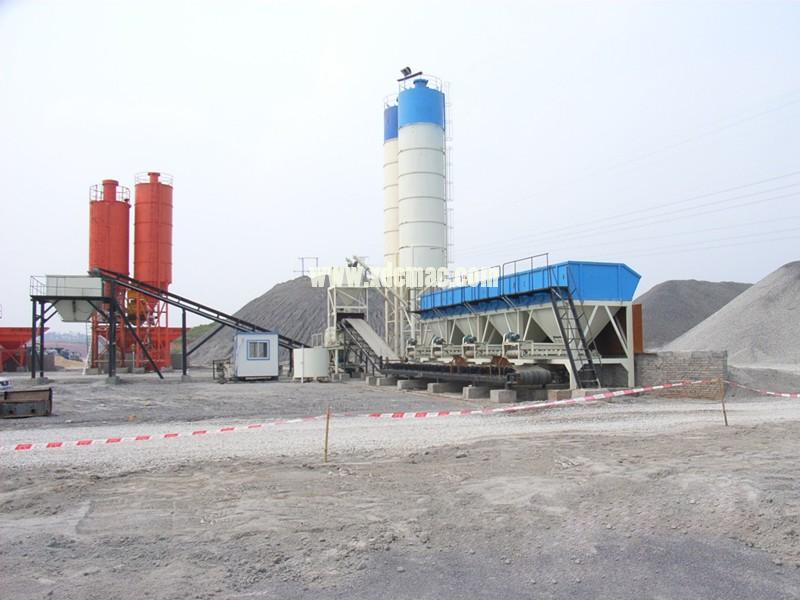

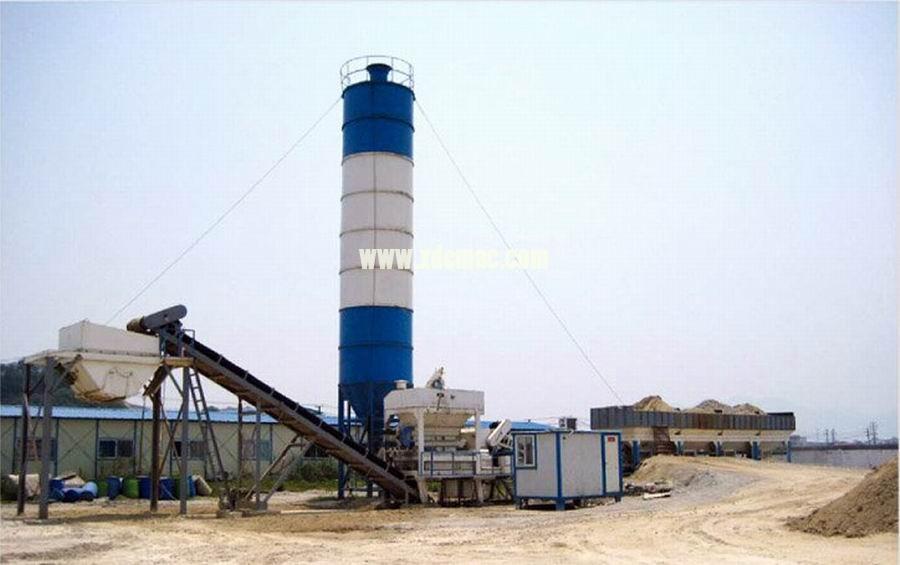

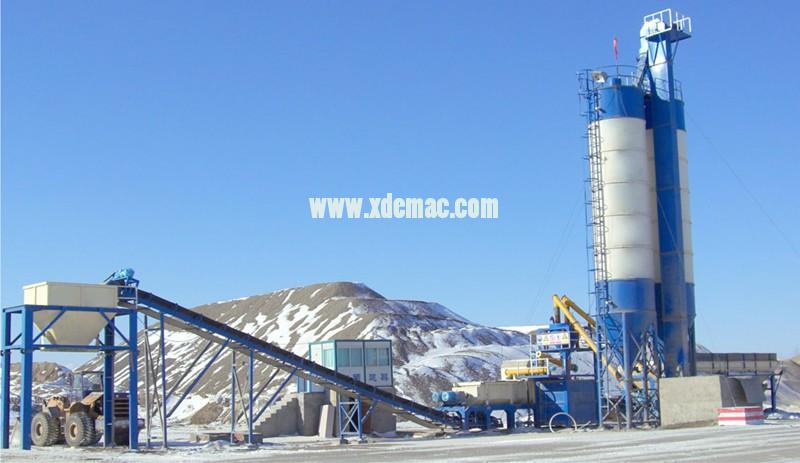

WBS300, WBS400, WBS500, WBS600 Stabilized soil mixing plant  WBS series of

Stabilized soil mixing plant is for continuously producing road bed stable layer material. It is mainly used in the construction of base layer of high-way, urban road, airport, seaport, and producing the gray soil layer and mixing the compactable concrete, adopts the advanced industrial computer to control and program, which can weigh different material separately and is of auto-adjustable and stable performance. Also it can simulate the production visibly and dynamically, operate and maintain easily, applying to the construction of big project, such as the construction of expressways, railways, urban streets, airports and ports, and the mixing of compressible concrete and the processing of gray soil.

Controlled by IPC, the facilities offer separate weighing and automatic adjustments with precision, stability and display of dynamic simulated production process. Owing to their applicability, scientific structure and convenience in maintaining, the facilities are desirable for the construction of large scale.

Features of Mobile Asphalt Batching Plant：

WBS300/400/500/600 computer measuring electromagnetic adjustable speed type stabilized mixing plant mainly uses in construct project the and so on first-class highway, urban road, airport, harbor the construction. The equipment has the characteristic as follows:

Main Parts:

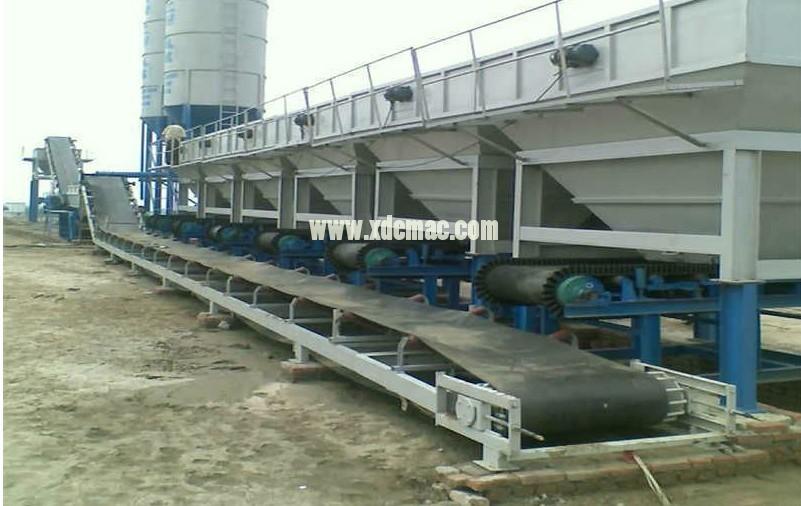

I. Batching System: The batching system of aggregate adopts speed regulation belt conveyer and volume measuring. The powder batching system adopts stellated feeding device. It is stabile and credible and change prescription rapidly.

II. Measuring System: Volume measuring and electromagnetic speed regulation.

III. Mixer: High scientific and technological content. The axes are easy to replace, access door on the side of machine, and high capacity and high productivity.

V. Control System: France Schneider electrical component, manual and automatic mode, easy to operate. The user do control on the console.

IV. Conveyor(after mixed): A loop rubber belt. It has large capacity and runs reposefully.

VII. Assemble & Disassemble: Module type structure, easy to assemble\disassemble and transport

The machine has electric measuring and electromagnetic speed regulation.

The mixer is advanced performance and high- class seal technique. The seal of end of axes is easy to replace. There is overhaul door on the side of machine. The mixer is big capacity and high productivity.

The batching system of aggregate adopts speed regulation belt conveyor and volume measuring. The powder batching system adopts stellated feeding device. It is stabile and credibility and change prescription rapidly.

There is manual and automatic control. It is good credibility and easy to operate. The operation is controlled on the console.

It adopts electromagnetic speed regulation. The main electrical component is from France Schneider Company.

The transportation of finished product material adopts advanced loop rubber belt. It is large capacity and runs reposefully.

The machine is module type structure. It is easy to assemble?disassemble and transport.

WBS series stabilized soil mixing plant

                Main Technical paraments
