Model

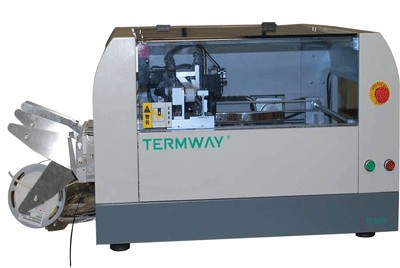

TP300V

PCB board size

350×210mm

Max moving range

410×320mm

Max moving range of Z axis

10mm

Typical Mounting speed

2000-2600cph

Max mounting speed

2800 cph

Repeating accuracy

±0.2mm

Position

Visional Position

Component available

SMD capacitor and resistor 0603 and IC (below 20mm)

Programme

Video study/ Keyboard input

Driving method

Use industrial synchronously driving belt

Belt feeder

Feeder 8mm,12mm,16mm,24mm optional

Feeder number

1\24 pcs of 8MM GFTA-08S at left side
2\22 pcs of 8MM GFTA-08S at right side(when no IC tray)

IC tray num

1 at most,in the situation, TP300V just can place 24 pcs of 8MM GFTA-08S feeder

Operation system

WINDOWS  XP

Compressed air

80psi(0.5Mpa),air flow 80L/M

Power supply

220v,50Hz,2kw

Weight

350kg

Dimension

780×850×450mm
