Technical Parameter:

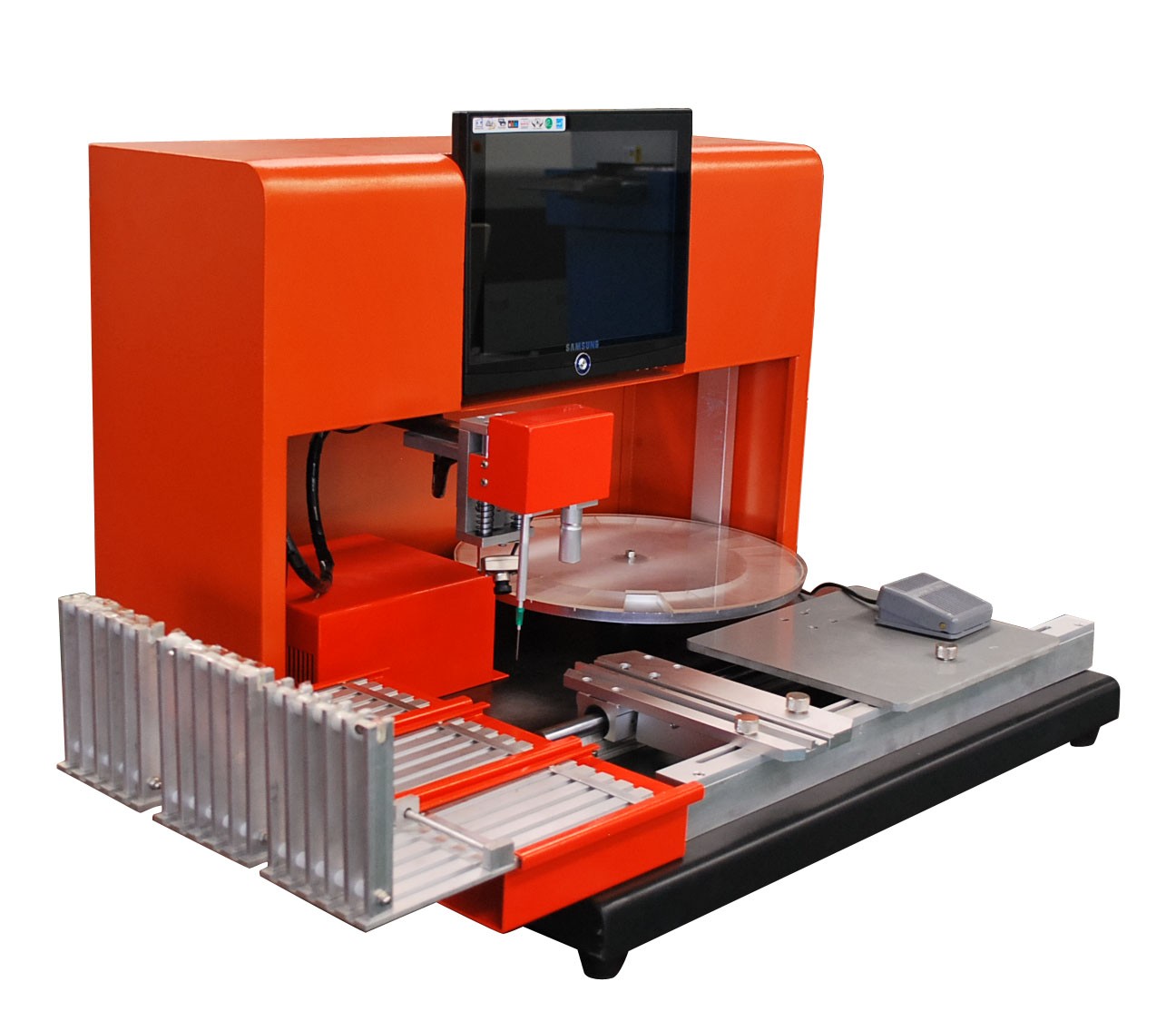

TP39V includes six parts
1\Mounter (Host body)
2\PCB Position Platform
3. Visional system
3\Guide control system
4\Mute Vacuum Pump
5\Component feeding system
Technical Parameters:
1 \TP39V has free machinery movement function. Has high precision
guiderail at X, Y axis, mounter head can move at X axis (levelly) of 540mm,
Y axis of 375mm
2. Visional system, component foot and PCB pad can image on 12'' LCD,
you can get an accurate mounting for QFP, QFN, PLCC, ect.
3\ High precision guiderail and bearing at X axis, mounter header can
move at Z axis (up and down) of 60mm to confirm high accuracy.
4\Mounter head can rotate freely, θ angle of 0-360°
5\Max size of printing: 260×280mm
6\Plate-type feeder can run at rotate at two directions
7\Mounting speed:300-600 pcs/h
8\Weight:about 42 kg
9\Dimension:710mm x 610mm x 475mm
II. Operation Process
Disc feeder can place 24 kinds of component, belt type can place 15
kind of component, after the placement of component according to the
actual require, power is on, operator can move the mounter head to the
top of the component, the component will be suction up automatically .
And then move to mounter head to PCB pad, visional system position, rotate
the head and put the head down towards the related height, mount the
component on the accurate PCB pad by stepping the foot pedal switch
III. System configuration
1\24 square grid intelligent disc feeder 1 pc
2\5 pcs belt feeder 2 group
3\Vacuum air pump(has installed on main machine) 1
4\PCB position platform 1 suit
5\Operation support board 1 pc
6\Mounting system 1 suit
7\Nozzle 5 pcs
8\Suction cup 6 pcs
